Victor Journeyman Edge 2.0 Cutting Outfit

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904.

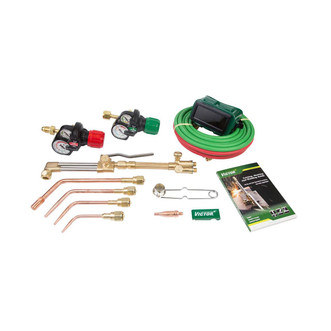

An extra-heavy-duty welding and cutting outfit. Includes Edge 2.0 oxygen and acetylene regulators, plus H315FC+ torch handle with built-in flash back arrestors and CA2460 cutting attachment. Regulators with improved gauge designs incorporate larger faced delivery gauge (low pressure) with high contrast colored face for easy setting. Enhanced color-coded knob designs provide more comfortable operations. Cuts up to 3/4". Welds 3/64"-1/2" with included nozzles.

Regulator Type: Single Stage
Delivery Ranges: 15 psig (Acetylene), 60 psig, 150 psig
Max. Inlet Pressure: 360 psig Acetylene and LP Gas, 3000 psig All Others
Gauges: 63mm/40mm ISO 5171 / UL Listed
Standards Compliance: CGA E-4, UL 252, ISO 2503, AS4267, ASTM G-175, Others (Depending on Model)
Other Safety: SLAM Impact Absorbing Safety Knob, Self Reseating Relief Valve (Excl. Acetylene, LP Gas)
Flow Coefficient (Cv): 0.285
Body: Forged Brass (CW617N per EN12165)
Bonnet: Die Casting Alloy No. 5, Conforming to ISO 301:1981 ZnAl4Cu1
Gauge Guard: Die Casting Alloy A380
Knob: High Impact ABS (Acrylonitrile Butadiene Styrene)
Diaphragm: AISI 301 Stainless Steel
Seat: 3000 psig Inlet Models - Urethane, Low Pressure Fuel Gases (Acetylene, Propane, etc.) - Neoprene
Inlet Filter: Sintered, Nickel Plated Bronze
Regulator weight: 4 lbs.
Kit weight: 22 lbs.

Includes
540/300 ESS42 Edge Regulators
WH315FC+ Torch Handle
CA 2460+ Cutting Attachment
Cutting tip
Tip cleaner
Heating nozzle
Striker
Goggles
Hose
Welding nozzles
