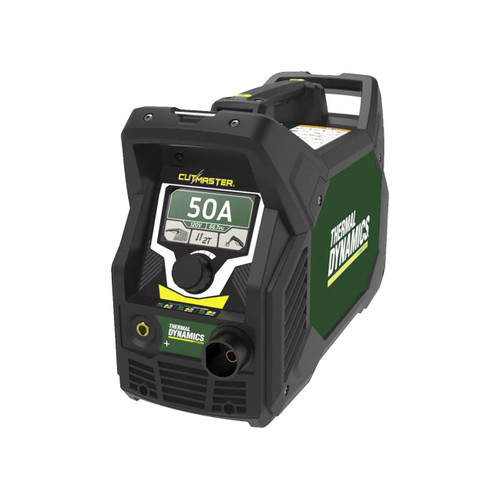

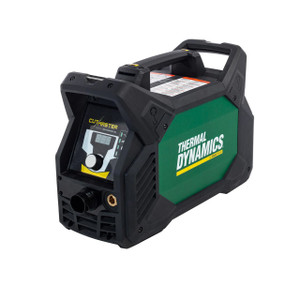

Thermal Dynamics CutMaster 50+ Plasma Cutter 120-240V

Description

The perfect combination of power and portability for hand-held plasma cutting.

Portable and durable with 3 handles and lightweight, industrial all-weather housing. Bright, user-friendly 4-1/3" TFT LCD screen with glove-friendly adjustment knob. Switch between normal and grate cutting modes. Master any cut up to 1". Post-cut air purge expands consumable life.

Compatible with all ATC torch connections. Manufacturer's 3-year warranty on power supply and 1-year warranty on torch and leads.

Input Volts: 120-240 VAC, 1 F ph, 50/60 Hz
Certification Mark: cETLus (NA)
Amperage Output: 15 – 50 A, continuously adjustable
Recommended Generator Size: 12+ kW
Pierce Capacity: Up to 16 mm (5/8")
Cutting Capacity: 25 mm (1") @ 205 mm/min (8 ipm)
Maximum Severance: 32 mm (1-1/4") @ 100 mm/min (4 ipm)
Open Circuit Voltage: (OCV) 310 V
Rated Duty Cycle: 120 VAC 40% @ 25A / 120V 100% @ 16A / 120V, 240 VAC 50% @ 50A / 150V 100% @ 30A / 150V
Circuit Breaker: 20A (120 VAC), 70A (240 VAC)
Amperage Draw: 31A (120 VAC), 36A (240 VAC)
Input Power Cable and Plug: 3 m (10'), 10 AWG, with NEMA 6-50P Plug
Gas Requirements: Comp. air Clean, dry, oil-free per ISO 8573-1 Class 1.2.2, Compressed Nitrogen: 99.95% pure
Operating Temperature Range: -10° to + 50°C (14°F to 122°F)
Inlet Air Pressure Requirement :6.2 – 8.6 bar (90 – 125 psi)
Recommended Outlet Air Pressure: 5.2 bar (75 psi)
Inlet Air Flow Requirement: 142 – 235 l/min (300 – 500 cfh)
Torch Duty Cycle: 100% at 60A @ 189 l/min (400 cfh) air flow and 5.2 bar (75 psi) pressure
Enclosure Class: IP23S
Overall size: 465 x 200 x 315 mm (18.3"L x 7.9"W x 12.4"H)
Weight: 17.5 kg (38.6 lbs.)

Includes
CutMaster 50+ Power Supply
SL60 torch and leads
Work Lead with Work Clamp
50 Amp to 20 Amp Adapter
20 Amp to 15 Amp Adapter
Quick Start Guide
Air fitting 1/4" NPT Milton type D
2 Electrodes
Start Cartridge
2 Cutting Tips
Gouging Tip
Shield Cup
Shield Cup Body
Drag Shield Cap
Standoff Cutting Guide
Deflector Shield Cap
Gouging Shield Cap
120V Adapter
