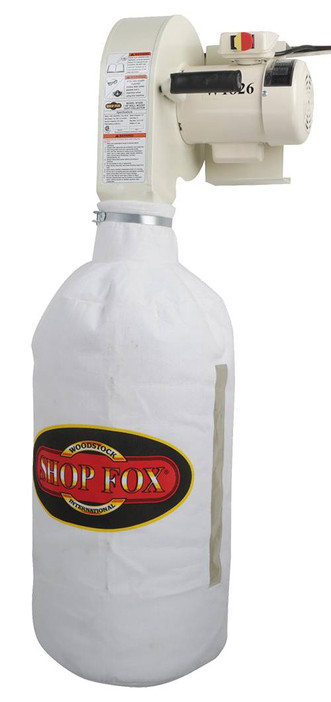

Shop Fox Wall Mount Dust Collector

Description

Wall mounted dust collector is designed to capture dust right at the source, eliminating the reduced efficiency of a duct system. With 537 CFM capacity, it will handle just about any woodworking machine, and with no complicated duct system, static pressure loss is minimal. A simple wall mounted bracket and locking screw system also ensures you'll be safely up and running in no time! The bag filters features a window to gauge how much dust is in the bag and a bottom zipper for easy dust disposal.

• For wood dust only
• Powder-coated finish
• Safety paddle switch
• CSA certified meeting CSA C22.2 #243-M91 standards

Motor: 1 HP, 120V/240V, single-phase
Motor amp draw: 7A/3.5A
Speed: 3,450 RPM
Air suction capacity: 537 CFM
Static pressure: 7.2"
Number of 4" intake holes: 1
Impeller: 10" balanced steel, radial fin
Bag capacity: 2 cubic feet
Bag size: 13-1/2" dia. x 24"D
Standard bag filtration: 2.5 micron
Cord: 6-5/8"L, 16 ga.
Size: 19-1/2"W x 18"D x 44"H
Weight 51 lbs.

Includes steel wall bracket and NEMA 5-15 plug for 120V .
