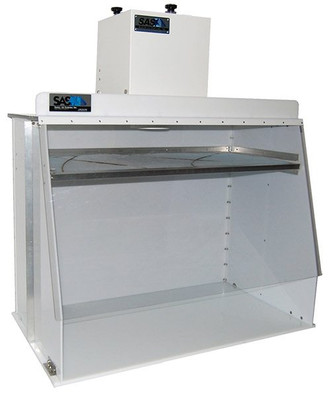

large clear booth with 40" clearance inside and HEPA filters for controlling aerosol sprays

Sentry Ductless Spray Booth 40"W (inside)

SKU: M773206 SS-340-DSH
Write a Review
$4,187.00
SKU:
M773206 SS-340-DSH
Availability:
Ships direct from manufacturer. Lead times may vary.

Frequently Bought Together

Please choose options for all selected products

  • Choose Options

Description

The 40"W Ductless Spray Booth provides a negative-pressure hooded enclosure for the control of aerosol spray. These energy-efficient systems utilize powerful fans and a variety of high-quality filtration media to provide effective source-capture of airborne contaminants and fumes. A unique internal spray filter, HEPA filtration, and Activated Carbon media help to protect the operator’s respiratory zone while also preventing unwanted spray particulate and odors from entering the general work area. The ductless and recirculating design of this benchtop hood eliminates the need for external ducting or costly replacement air.

Ductless Spray Hoods are typically used for light spray painting, aerosol sprays, epoxy overspray, touch-up painting, conformal coating fumes, and a variety of other processes that release aerosol particulate and odor.

  • Quiet operation
  • Simple, quick "No Tool" filter change
  • Portable and lightweight
  • Reliable, low maintenance operation
  • Mfr.'s 2-year limited warranty

115/220V (115V Approx. 2 Amps), (220V Approx. 0.75 Amps)
8' grounded power cord with NEMA 5-15P plug.

Filtration:
Pre-filter: Internal spray pre-filter
Main filter:
HEPA (up to 99.97% efficient on particles 0.3 microns and larger)
ASHRAE (up to 95% efficient on particles 0.5 microns and larger)
Activated carbon

Air volume 50-350 CFM (varies with filter media)

Inlet velocities:
Pre-filter & 99.97% HEPA Filter: 120 FPM High, 25 FPM Low
Pre-filter & Heavy-duty Carbon Filter: 105 FPM High, 20 FPM Low

Hood material:
Sides: 0.250" (White Acrylic)
Base: 0.500" (White High Density Polyethylene)
Top: 0.500" (Clear Polycarbonate)
Front: 0.250" (Clear Polycarbonate)

Blower:
Dimensions: 15.5"L x 13"W x 14.5"H (including control box)
Material: 16 ga. carbon steel with polyester epoxy coating on all surfaces
Sound level: 61-66 dBA (blower speed low to high)
Max. operating temperature: not to exceed 170°F

Hood Dimensions:
Outer: 24"D x 42"W x 32"H
Interior: 23.5"D x 40"W x 24"H
Weight 125 lbs.

Includes clear anti-static vinyl curtains and variable speed controller.

Please specify voltage, 115V will be shipped if not specified.

Meets OSHA Requirements: 1910.107(b)(5)(i).
