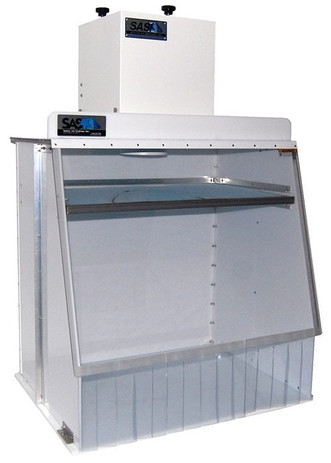

Sentry Ductless Spray Booth 30"W (inside)

Description

The 30"W Ductless Spray Booth is a hooded enclosure specifically designed for the control of aerosol spray. This system is a negative-pressure benchtop enclosure that captures and filters aerosol particles produced by a variety of applications, including light spray painting, aerosol sprays, epoxy overspray, touch-up painting, conformal coating fumes, and a variety of other processes that release aerosol particulate and odor.

This benchtop hood utilizes a unique internal spray filter, HEPA filtration, and Activated Carbon filtration to contain hazardous particulate and unwanted odor. It is also ductless and does not require any external venting, which makes it an optimal solution for indoor environments where external venting is not practical or desired. The 30"W Ductless Spray Booth features energy-efficiency and quiet and low maintenance operation.

• Quiet operation
• Simple, quick "No Tool" filter change
• Portable and lightweight
• Reliable, low maintenance operation
• Mfr.'s 2-year limited warranty

115/220V (115V Approx. 2 Amps), (220V Approx. 0.75 Amps)
8' grounded power cord with NEMA 5-15P plug.

Filtration:
Pre-filter: Internal spray pre-filter
Main filter:
HEPA (up to 99.97% efficient on particles 0.3 microns and larger)
ASHRAE  (up to 95% efficient on particles 0.5 microns and larger)
Activated carbon

Air volume 50-350 CFM (varies with filter media)

Inlet velocities:
Pre-filter & 99.97% HEPA Filter: 120 FPM High, 25 FPM Low
Pre-filter & Heavy-duty Carbon Filter: 105 FPM High, 20 FPM Low

Hood material:
Sides: 0.250" (White Acrylic)
Base: 0.500" (White High Density Polyethylene)
Top: 0.500" (Clear Polycarbonate)
Front: 0.250" (Clear Polycarbonate)

Blower:
Dimmensions: 15.5"L x 13"W x 14.5"H (including control box)
Material: 16 ga. carbon steel with polyester epoxy coating on all surfaces
Sound level: 61-66 dBA (blower speed low to high)
Max. operating temperature: not to exceed 170°F

Hood Dimensions:
Outer: 24"D x 32"W x 32"H
Interior: 23.5"D x 30"W x 24"H
Weight 110 lbs.

Includes clear anti-static vinyl curtains and variable speed controller.

Please specify voltage, 115V will be shipped if not specified.

Meets OSHA Requirements: 1910.107(b)(5)(i).
