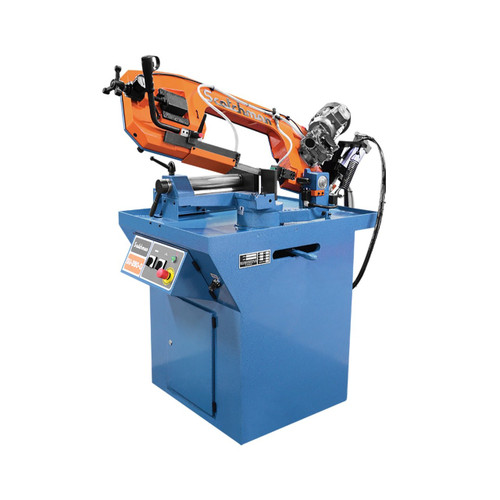

Scotchman Metal-Cutting Utility Band Saw, 230V, 3PH

Description

Combines the cutting of a traditional band saw with the flexibility and accuracy of a cold saw. For larger material that requires a bandsaw, this scaled-down but rugged horizontal band saw can easily cut through round material up to 8" diameter and features a swing head that can miter 60° right of 90°, giving you a 30° cut part without material movement. It also features a metered feed rate for quick and effortless cuts without operator assistance!

• Quick action locking vise
• Blade trigger switch
• Blade tension gauge
• Gravity feed with adjustable down-feed pressure
• Carbide blade guides with roller supports
• Re-circulating coolant system
• Band door interlocks
• Meets CE standards
• Manufacturer's 3-year parts warranty

Maximum Cutting Capacities
Round: 90°- 8", 45°- 7", 60°- 4-1/4"
Square: 90°- 8", 45°- 6-1/4", 60°- 4"
Rectangle: 90°- 11" x 7-3/4, 45°- 7" x 6-1/4", 60°- 4-1/4" x 4"
Blade Length: 1" x 96.5"
Cutting Speed: 131/262 FPM
Motor: 1.3 HP, 230V, 3 PH
Overall size: 33-1/2"W x 55"D x 69"H
Shipping weight: 650 lbs.

Includes
band saw blade
1 gallon coolant
