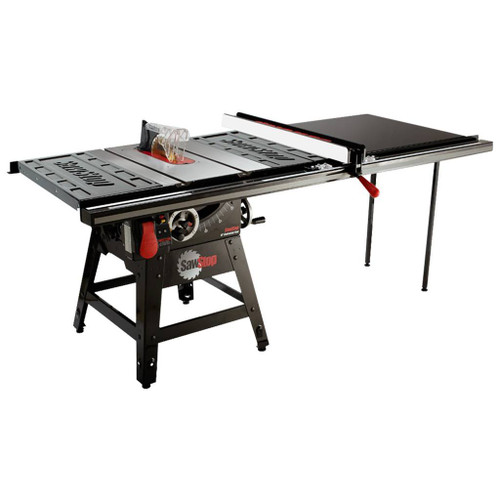

SawStop 10" Contractor Saw, 52" T-Glide Fence, 1.75 HP, 120V

Description

The SawStop® Contractor Saw offers versatility and safety. Better-than-hybrid performance in the shop, and stability and mobility on the jobsite. It delivers the performance you need with the peace of mind only SawStop's patented safety system can provide.

• Precision, performance and safety all come together to make this the right choice for experts looking for a reliable saw at an affordable price
• SawStop Safety System stops on contact with skin
• Quick and easy setup
• Unmatched fit and finish with a keen attention to detail
• 52" Professional T-Glide Fence System provides smooth operation, precision measurement and sure lockdown without deflection
• Mfr.'s 1-year warranty

Features

Protect Your Students
Unrivaled safety and innovation all delivered in a five-millisecond response that has saved thousands of fingers.

SawStop Saws Detect Contact With Skin
The blade carries a small electrical signal, which the safety system continually monitors. When skin contacts the blade, the signal changes because the human body is conductive. The change to the signal activates the safety system.

How It Works

​1. Monitor & Detect

• The blade carries a small electrical signal.
• When skin contacts the blade, the signal changes because the human body is conductive.
• The change to the signal activates the safety system.

​2. Brake Activation

• An aluminum brake springs into the spinning blade, stopping it in less than 5 milliseconds!
• The blade's angular momentum drives it beneath the table, removing the risk of subsequent contact.
• Power to the motor is shut off.

​3. Reset
Resetting the saw yourself is easy. Simply inspect the blade (and change if damaged) and replace the brake cartridge, and your saw is operational. The entire process takes 90 seconds and you're back to work.

Specifications

Model: CNS175-TGP252: 52" rip capacity & T-Glide Fence Assembly
Motor: CNS175: 1.75 HP, 120V, 14 A, 60Hz, TEFC

Saw body footprint: 25-3/4"W x 27"D
Cast iron table: 20"W x 27"D
Cast iron table (w/extension wings): 44"W x 27"D (w/opt. cast iron wings)
Extension wings: 12"W x 27"D each
Extension table: 40-1/8"W x 27"D

Overall saw dimensions (body only): 44"W x 39-1/4"D x 34-3/4"H
Overall saw dimensions: 85-1/4"W x 45"D x 34-3/4"H
Shipping dimensions (saw body only): 35"W x 30"D x 20"H

Weight (table saw only): 225 lbs.
Weight w/52" fence system: 335 lbs.
Weight (optional cast iron wings): 35 lbs. each
Shipping weight (approx.): 240 lbs. (table saw only)

Blade: 40-tooth, prof. grade, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078" (2mm)
Max. depth of cut, blade at 0°: 3-1/8"
Max. depth of cut, blade at 45°: 2-1/4"
Max. rip, right of blade: 52-1/2" (w/52" rails)
Max. rip, left of blade: 12-1/2" (w/T-Glide Fence)

Dado diameter: 8" (req. dado brake + insert)
Dado max. width: 13/16"
Arbor diameter at blade: 5/8"
Main bearing size: 62mm OD x 30mm ID
Second bearing size: 52mm OD x 25mm ID
Table in front of blade (max. elevation): 10-5/8"
Table behind blade (max. elevation): 7-1/8"
Arbor Runout: 0.001" Maximum allowable runout
Table flatness measured diagonally: 0.016" Maximum gap

Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: ±0.25°
Alignment between splitter and blade: 0.010" Maximum difference
Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep
Miter slots center: 11-1/8" center-to-center
Miter slots info: 5-1/2" (arbor flange to center of right slot)
Dust collection port diameter: 4" under table top
Riving knife / splitter thickness: 0.090" (2.3 mm)
Micro blade guard: polycarbonate, extends 1" right of blade

Blade guard (dust collection) port diameter: 1-1/2" Outside, 1-1/4" Inside
Insert: zero clearance, phenolic core, melamine surfaces
Hand wheels: 6" diameter, cast alum. w/ABS handle
Belts: V-ribbed belt – static dissipative

What's in the box

(2) Steel Extension Wings
(1) Miter Gauge
(1) Micro Blade Guard
(1) Riving Knife
(2) Blade Wrenches
(1) Push Stick
(1) 10" Blade
(1) Standard Brake Cartridge
(1) Owner's Manual
(1) Assembly Instructions
(2) Hardware Packs
(1) 3mm Hex Key
(1) 5mm Hex Key
(1) 8mm Hex Key
(1) Blade Spacing Adjustment Gauge
