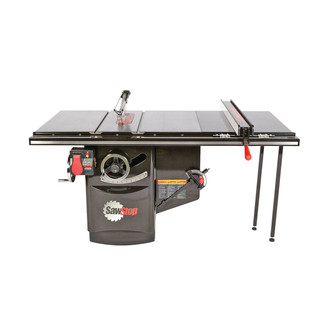

SawStop 10" Cabinet Saw with 36" Fence, 7.5HP, 3PH, 480V

Description

Type a description for this product here...

Motor: 7.5 HP, 3 phase, 480V, 9A, 60Hz, TEFC
Rip Capacity: 36"
Blade: 40-tooth Titanium, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118"
Blade plate thickness: 0.078"
Max. depth of cut, blade at 0°: 3-1/8"
Max. depth of cut, blade at 45°: 2-1/4"
Max. rip, left of blade: 12-1/2"
Dado diameter: 8"
Dado max. width: 29/32"
Arbor diameter at blade: 5/8"
Arbor Runout: 0.001" Maximum allowable runout
Main bearing size: 62mm OD x 30mm ID
Second bearing size: 52mm OD x 25mm ID
Table in front of blade (max. elevation): 10-3/4"
Table behind blade (max. elevation): 10"
Arbor Runout: 0.001" Maximum allowable runout
Table flatness measured diagonally: 0.010" Maximum gap
Belts: 2 V-ribbed belts - arbor b. static dissipative
Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: ±0.25°
Alignment between splitter and blade: 0.010" Maximum difference
Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep
Miter slots center: 11-1/8" center-to-center
Miter slots info: 5-1/2" (arbor flange to center of right slot)
Dust collection port diameter: 4"
Dust collection blade guard: polycarbonate, extends only 1-3/16" to right of blade
Blade guard: (dust collection) port diameter 1-1/2" Outside, 1-1/4" Inside
Insert: zero clearance, phenolic core, melamine surfaces
Hand wheels: 8" diameter, cast iron with chrome handle
Riving knife / splitter thickness: 0.090"
Extension table: 24"W x 30"D
Extension wings: 10"W x 30"D
Overall size: 69-1/4"W x 36-1/2"D x 34"H
Assembled weight: 635 lbs.

Includes
2 cast iron extension wings
miter gauge
dust collection blade guard
riving knife
2 blade wrenches
push stick
10" blade
standard lockdown insert
standard brake cartridge
2 hardware packs
3 hex keys
blade spacing adjustment gauge
manual
