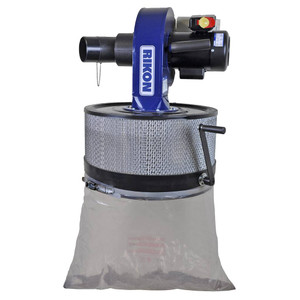

Rikon Portable Dust Collector

Description

This portable dust collector is adaptable for many uses that a small shop encounters. Single 4" dust port draws 660 CFM, more than enough vacuum power for big chip makers, like jointers and planers. Features an adjustable pipe extension with chip collecting funnel that can be positioned high for use with lathes, drill presses and workbenches. Built-in casters and handle. Mfr.'s 5-year warranty.

Volts: 115/230V, 60 Hz
Horsepower: 1 HP TEFC
Amps: 7.5/3.75
Speed (No Load): 3,400 RPM
Dust collection velocity: 660 CFM
Blower impeller: 9” dia., Steel
Cloth bag filtration: 2 Microns
Bag diameter: 16"
Bag length: 22"
Bag capacity: 2.4 CF
Dust ports/hose connections: 1@4"
Intake funnel size: 9" x 4-3/4"
Maximum funnel height: 55"
Sound rating @ 3 feet: <78dB
Base size: 13-5/8" x 11-5/8"
Tool size: 14-1/2"W x 19"H x 18"D
Tool weight: 48 lbs.

Includes 2 micron cloth filter bag, 108"L x 4" dust hose, adjustable pipe and  funnel attachment system, safety on/off switch and wall mounting brackets.
