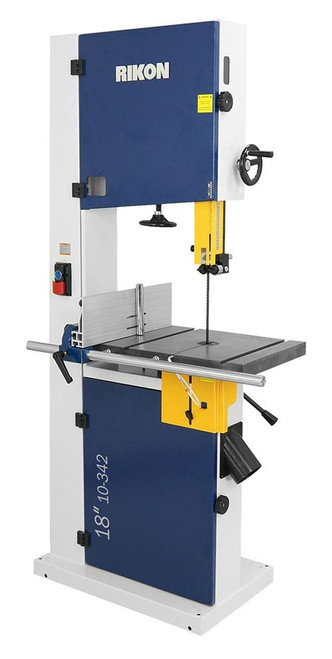

Rikon 18" Deluxe Band Saw

Description

18" Bandsaw #10-342 is an entry level machine. Ample 2 HP motor provides plenty of power behind the single 3,200 ft/min blade speed of the machine. Cast iron table includes a single ‘T’ slot for use with miter gauges (available separately) or other cutting jigs. Includes 120V electrical outlet on rear of machine. Machine requires 4-wire electrical plug.

• 13" cutting capacity
• Spring loaded tool-less guide system - no tools need to quickly adjust the guide bearings
• Quick adjust 6" tall fence system - adjust the fence to either side of the blade
• Quick adjust trunnion system - equipped with a large handle and locking arm for rapid adjustment
• Quick release blade tension
• Hinged blade guard with sight window
• Mfr.'s 5-year warranty

Volts: 220V, 60Hz, 1Ph
Horsepower: 2 HP TEFC
Amps: 7.5
Blade Speed: 3,280 FT/MIN
Cutting Capacity: 13"H x 17-1/2"W
Blade: 153"L
Width: 1/4" - 1-3/8"
Table Size: 21-1/2" x 15-3/4"
Left Side Extension: 4-3/8" x 15-3/4"
Left Tilt: -10°
Right Tilt: 45°
Miter Gauge “T” Slot: (2) 3/4" x 3/8"
Height to Floor: 35-1/2"
Fence Size: 20-7/8" x 1-7/8" x 6"
Overall size: 72-7/8"H x 38-1/2"W x 28-1/8"D
Base Size: 29-5/16" x 18-1/8"
Dust Port: 2 @ 4"
Weight: 324 lbs.

Includes 153" x 5/8" , 3 TPI, blade.
