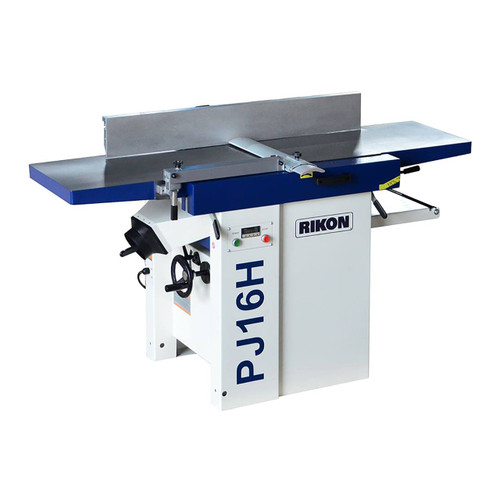

Rikon 16" Helical Planer/Jointer 4HP, 230V

SKU: W694160 25-216H
Write a Review
$5,075.00
SKU:
W694160 25-216H
prop65:

Frequently Bought Together

Please choose options for all selected products

Description

The machine for those who need more capacity. Equipped with a large 16" cutter head and powerful 4HP motor that make quick work milling the hardest, or widest rough-sawn lumber. The tables are made of heavy, cast iron and machined smooth for efficient movement through the cutters. Unique, one-piece jointer tables easily lift up and out of the way for planer use, or to work on the cutter head. Mfr.'s 5-year limited warranty.

Motor Horsepower: 4 HP
Motor Amps: 16
Motor Volts: 230V, 60 Hz
Motor RPM: 3,400
Cutterhead Speed: 5,500 RPM
Cuts Per Minute: 16,500 CPM
Number Of Carbide Inserts (4 Sided): 44
Carbide Insert Size: 15mm x 15mm x 2.5mm
Number Of Insert Rows: 2
Cutterhead Diameter: 2-1/2"
Fence Size: 43-1/4" x 6"
Fence Tilts: 90° to 135°
Fence Positive Stops: 90° and 45°
Planer Maximum Cutting Width: 16"
Planer Maximum Cutting Height: 8"
Planer Maximum Cutting Depth: 1/8"
Planer Wood Feed Rate: 23 SF/MIN
Planer Table Size: 16-1/8" x 23-1/2"
Jointer Maximum Cutting Width: 16"
Jointer Maximum Cutting Depth: 1/8"
Dust Port: 5"
Jointer Table Size: 16" x 31-7/8"
Jointer Table Height from Floor: 35-1/2"
Overall Height: 39-1/2"
Overall Width: 38"
Overall Depth: 65-1/2"
Overall Base Size: 25" x 23"
Weight: 639 lbs.
