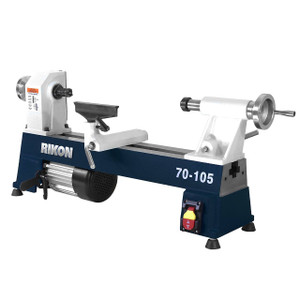

Rikon 12" VSR Midi Lathe with Z3 Chuck System 115V

Description

Designed to offer features seen on larger industrial lathes, this is an ideal lathe for novice to professional turners. Powerful 1.25HP DC BRUSHLESS motor, electronic variable speed controls, a wide range of operating speeds, digital RPM readout, ample diameter and spindle length turning capacities in forward and reverse drives. Corded control box has a magnetic back that allows it to be moved along the front of the cast iron lathe bed, and positioned where you want it for easiest access when turning.

• Powerful 1.25 HP DC brushless motor
• Magnets on back of the control box allow it to be placed anywhere easily accessible
• Pivoting belt cover for easy access when changing belt speeds
• Ball-bearing construction for smooth, precise spindle operation
• Machined bed and matching components give precise alignment
• Adjustable locking handles keep components positioned securely
• 1" diameter tool rest post
• Lathe bed has machined ends for adding extensions to increase spindle capacity
• Mfr.'s 5-year limited warranty

Motor Horsepower: 1.25 HP TEFC
Motor Amps: 10
Motor Volts: 120V, 60HZ
Motor RPM: 3,200 RPM
Direction: Forward (C-Clockwise) and Reverse (Clockwise)
Number of Speeds: Variable
Speed Ranges: 250-850, 430-1450, 950-3200 RPM
Swing Over Bed: 12"
Swing Over Tool Rest: 9-1/4"
Working Distance Between Centers: 16-1/2"
Tool Rest Post Diameter: 1"
Headstock Spindle x TPI: 1" x 8 TPI
Outboard Swing Over Tool Rest Base: 12-1/2"
Tailstock Taper: MT2
Ram Travel: 3-1/2"
Indexing Positions: 24
Bottom of base to spindle: 15-9/32"
Overall size: 39"L x 13-3/8"W x 15-5/8"H
Overall Base Size: 31-13/16" x 7-7/32"
Weight: 99 lbs.

Includes
Z3 chuck system
2"/50MM jaw set
spur center
live center
3" faceplate
6" pro tool rest with 1" dia. post
knock-out bars
wrenches
tool holder
