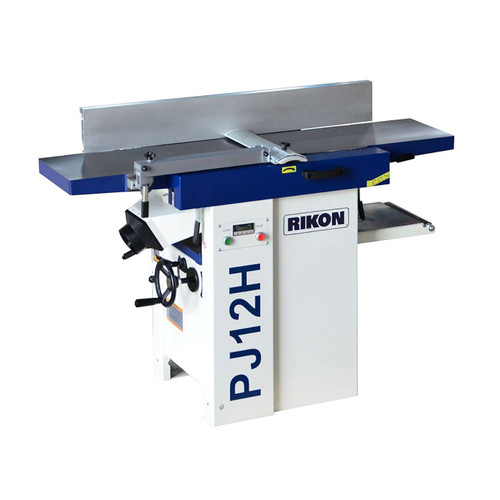

Rikon 12" Helical Head Planer/Jointer, 3HP, 220V

SKU: W694166 25-212H
Write a Review
$4,568.00
SKU:
W694166 25-212H
prop65:

Frequently Bought Together

Please choose options for all selected products

Description

Equipped with a 12" cutter head and 3HP motor that make quick work in milling the hardest, or widest rough-sawn lumber. The jointer and planer tables are made of heavy cast iron and machined smooth for efficient movement through the cutters. Unique, one-piece jointer tables easily lift up and out of the way for planer use, or to work on the cutter head.

  • Helical Cutter Head with 34 Four-sided Carbide Inserts
  • Large 43-1/4" x 6" Fence
  • Tilts 90° to 135°
  • Full Jointer Table Size 12" x 55-3/4"
  • Planer Depth Scale with Digital Readout

Horsepower: 3HP
Amps: 12
Motor: 230V, 60Hz
Speed (No Load): 3,400 RPM

Cutting Capacity - Jointer
Max. Cutting Width: 12"
Max. Depth of Cut: 1/8"
Min. Length of Stock: 10"
Min. Width of Stock: 3/4"
Min. Thickness of Stock: 1/2"
Table Size (2): 12" x 27"
Overall Table Size: 12" x 55-3/4"

Cutting Capacity - Planer
Max. Cutting Height/Width: 8" x 12"
Max. Depth of Cut: 1/8"
Min. Length of Stock: 12"
Overall Table Size: 13-1/8" x 21-1/2"
Table Size with Extension: 13-1/8" x 35-1/2"

Cutter head
Speed: 5,500 RPM
Number of Carbide: Inserts (4 sided) 34
Carbide Insert Size: 15 mm x 15 mm x 2.5 mm
Number of Insert Rows: 2
Diameter: 2-1/2"
Cuts per Minute: 16,500
Fence Size: 43-1/4" x 6"
Tilt: 90° to 135°

Overall size: 55-3/4"L x 31"W x 39-1/2"H
Base Size: 21-1/2"L x 19"W
Dust Port: (OD) 4"
Weight: 509 lbs.

Includes
outfeed planer table
