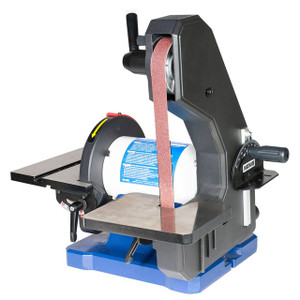

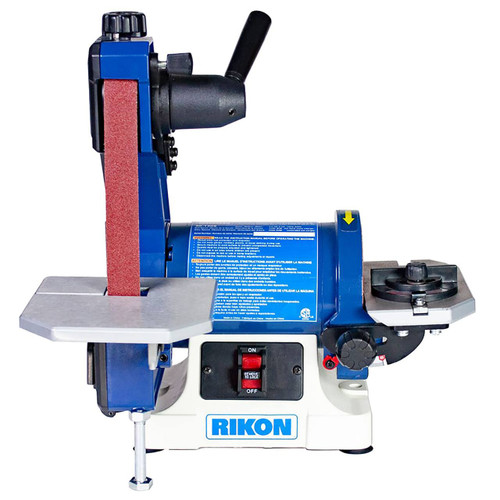

Rikon 1 x 30" Belt with 5" Disc Sander

SKU: M694222 50-1305
Write a Review
$174.00
SKU:
M694222 50-1305
prop65:

Frequently Bought Together

Please choose options for all selected products

Description

1" x 30" Belt/5" Disc Sander is great for working on small craft projects – home decorations, jewelry, toys, doll furniture, repair work and more. The machine’s small motor is very efficient in driving the belt and disc, so stock removal goes quickly. Recommended for light-duty use.

  • Powerful induction motor provides plenty of power for sanding
  • Spring loaded tension automatically keep belt at best-operating level
  • Belt tracking knob allows correct positioning of belt on frame
  • PSA sandpaper disc applies quickly to the metal disc plate for instant use
  • Work table adjusts 0° to 45° with large locking handle for sanding angles
  • Dust hood and port for efficient dust removal
  • On/Off switch with removable safety tab for extra security
  • 5-yr. mfr.'s warranty

Construction: Cast metal
Tables: Cast aluminum
Motor Horsepower: 1/3 HP
Motor Amps: 2.3
Motor Volts: 120V, 60 Hz
Belt Table Size: 5-11/16" x 5-11/16"
Disc Table Size: 6-11/16" x 3-11/16"
Tables Tilt: 0° to 45°
Miter Gauge Slot: 7/16" x 1/4"
Belt Size 1" x 30"
Belt Speed: 3,390 SFPM
Disc Diameter: 5" PSA
Disc Speed: 3,580 RPM
Dust Ports: 1-3/8" O.D or 1-3/16" ID
Overall Height: 15"
Overall Width: 14-3/8"
Overall Depth: 14-3/8"
Overall Base Size: 8-5/16" x 5-7/8"
Weight: 17 lbs.

Includes
miter gauge
80 grit disc
100 grit belt
