Raven CNC Lab Package

Description

A great starting point for any classroom or Makerspace. One RAVEN CNC machine outfitted specifically for the system’s most popular uses. Use it to create decorative carvings, signs, part cutting, lithophanes, and more. Manufacturer's 1-year/200-hour warranty.

Capabilities: 3D carving, cutting, routing
Build Volume: 15.5" (39.37cm) x 5.5" (13.97cm) x 12' (365.76cm)
Max Encoder Resolution: 0.0003" (0.000762cm)
Spindle Speed: 3,000-22,000 rpm
Carving speed: up to 6 ips (15.24 cps)
Jogging speed: 9.3 ips (23.622 cps)
Software Bundle: Designer™ 5 (Includes fifty 3D carving patterns)
File Types: RVN, PTN, MPC, MPW
Imports: STL, SVG, PNG, JPG, BMP, GIF
Addons: import DXF, OBJ
Operating Systems: Windows (10+), Mac OS X (10.6+)
Connectivity: USB Flash Drive
Controller: ServoSmart™ 2 Advanced Motion Control
Chassis: Cast aluminum head and trucks
Body: Painted steel and ABS plastic
Feed-through Belts: Heavy-duty rubberized PVC
Linear Bearings: Double-row precision roller bearings
Spindle Chuck: CarveTight
Servo Motors: Mabuchi
Brushless Spindle Motor: 675W cont. output, 1.25HP, 3,000–22,000 rpm
Storage Temperature: 32°–105°F (0–41°C)
Operating Temperature: 50°–105°F (10–41°C)
Universal Power Supply: 90-240V, 50–60 Hz
Overall size: 19" (45.72cm) x 13" (33.02cm) x 15" (38.1cm)
Weight: 80 lbs. (36.3 kg)

Includes

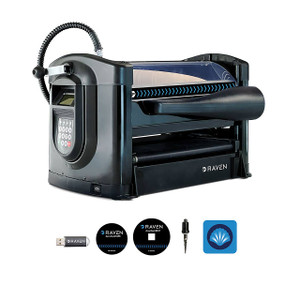

RAVEN CNC Machine
Carving Bit 1/16"
4 Seats Designer 5 Software
4 Seats Vcarve Suite Software Add-On Module
SIGN Makers Bit Set
Dust Collection Hood
Large 240 Grit Sanding Mop
