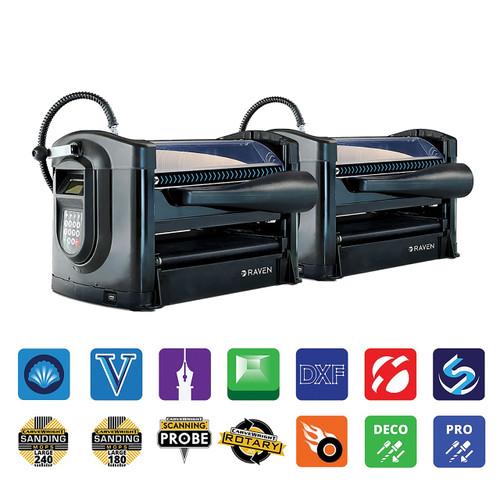

Raven
Ideal for larger classrooms or Makerspaces that would like to explore the full range of software and bits as well as the 3D Scanning Probe. This full-featured package includes the CarveWright Rotary Jig. Manufacturer's 1-year/200-hour warranty.
Capabilities: 3D carving, cutting, routing
Build Volume: 15.5" (39.37cm) x 5.5" (13.97cm) x 12' (365.76cm)
Max Encoder Resolution: 0.0003" (0.000762cm)
Spindle Speed: 3,000-22,000 rpm
Carving speed: up to 6 ips (15.24 cps)
Jogging speed: 9.3 ips (23.622 cps)
Software Bundle: Designer™ 5 (Includes fifty 3D carving patterns)
File Types: RVN, PTN, MPC, MPW
Imports: STL, SVG, PNG, JPG, BMP, GIF
Addons: import DXF, OBJ
Operating Systems: Windows (10+), Mac OS X (10.6+)
Connectivity: USB Flash Drive
Controller: ServoSmart™ 2 Advanced Motion Control
Chassis: Cast aluminum head and trucks
Body: Painted steel and ABS plastic
Feed-through Belts: Heavy-duty rubberized PVC
Linear Bearings: Double-row precision roller bearings
Spindle Chuck: CarveTight
Servo Motors: Mabuchi
Brushless Spindle Motor: 675W cont. output, 1.25HP, 3,000–22,000 rpm
Storage Temperature: 32°–105°F (0–41°C)
Operating Temperature: 50°–105°F (10–41°C)
Universal Power Supply: 90-240V, 50–60 Hz
Overall size: 19" (45.72cm) x 13" (33.02cm) x 15" (38.1cm)
Weight: 80 lbs. (36.3 kg)
Includes
2 -RAVEN CNC Machines
Carving Bit 1/16"
8 Seats Designer 5 Software PRO Bundle
2 Rotary Jig with software
2 Scanning Probe with software
2 Keyhole bit with software
2 Dust Hood
2 Large 240 Grit Sanding Mop
2 Large 180 Grit Sanding Mop
2 PRO Cutting and Carving Bit Set
2 DECO Router Bit Set
