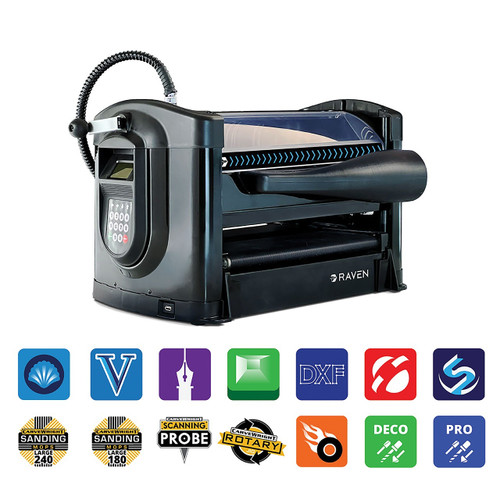

Raven CNC Innovator Lab Package

Description

Type a description for this product here...

Capabilities: 3D carving, cutting, routing
Build Volume: 15.5" (39.37cm) x 5.5" (13.97cm) x 12' (365.76cm)
Max Encoder Resolution: 0.0003" (0.000762cm)
Spindle Speed: 3,000-22,000 rpm
Carving speed: up to 6 ips (15.24 cps)
Jogging speed: 9.3 ips (23.622 cps)
Software Bundle: Designer™ 5 (Includes fifty 3D carving patterns)
File Types: RVN, PTN, MPC, MPW
Imports: STL, SVG, PNG, JPG, BMP, GIF
Addons: import DXF, OBJ
Operating Systems: Windows (10+), Mac OS X (10.6+)
Connectivity: USB Flash Drive
Controller: ServoSmart™ 2 Advanced Motion Control
Chassis: Cast aluminum head and trucks
Body: Painted steel and ABS plastic
Feed-through Belts: Heavy-duty rubberized PVC
Linear Bearings: Double-row precision roller bearings
Spindle Chuck: CarveTight
Servo Motors: Mabuchi
Brushless Spindle Motor: 675W cont. output, 1.25HP, 3,000–22,000 rpm
Storage Temperature: 32°–105°F (0–41°C)
Operating Temperature: 50°–105°F (10–41°C)
Universal Power Supply: 90-240V, 50–60 Hz
Overall size: 19" (45.72cm) x 13" (33.02cm) x 15" (38.1cm)
Weight: 80 lbs. (36.3 kg)

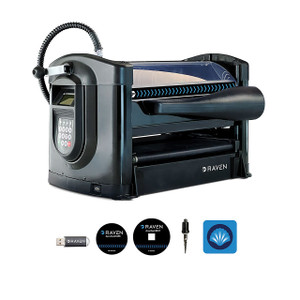

Includes
RAVEN CNC Machine
Carving Bit 1/16"
4 Seats Designer 5 Software PRO Bundle
Rotary Jig with software
Scanning Probe with software
Keyhole bit with software
Dust Hood
Large 240 Grit Sanding Mop
Large 180 Grit Sanding Mop
PRO Cutting and Carving Bit Set
DECO Router Bit Set
