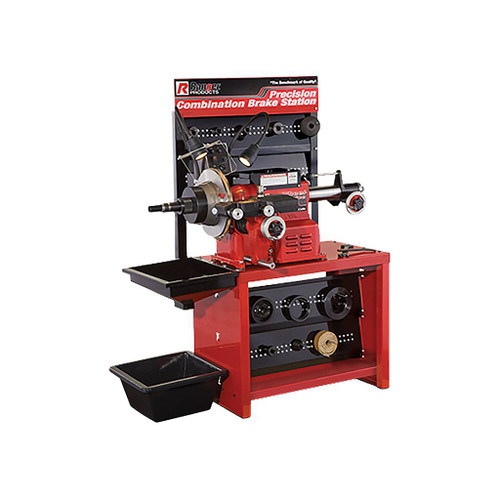

Ranger Combination Brake Lathe Package

Description

The revolutionary RL-8500 combination brake lathe uses independent DC servo motors to control the cross-feed and spindle feed drives, eliminating the need for complex mechanical gear boxes and transmissions typically found on mechanically-driven brake lathes.

The ruggedly built RL-8500 brake lathe is capable of faster, easier and more accurate rotor/flywheel and drum/flywheel resurfacing than any other brake lathe in its class. Infinitely adjustable feed rates allow you to easily modify cut speeds with the simple turn of a dial. Now you can reduce or increase the cut-time for the best finish results, whether you’re speeding through an initial rough cut or a single-pass micro-finish. This complete lathe package includes the lathe, a sturdy bench and large tool storage backboards, so you can hang all your adapters within close reach.

One of the common problems that plague other brake lathes is the vibration and chatter transfer that directly affects the tool-tip and leaves an imperfect cut on the machined surface. The RL-8500 brake lathe by Ranger is specifically designed to address this issue by eliminating the need for gear-driven mechanical drives and variable-speed transmission devices.

• Precision electric DC servo motors designed to meet the demanding requirements of industrial motion control
• Quick-Change Adapter-Plus system with built-in springs eliminates the need for conventional bell clamps and cones
• Works on all cars or trucks, both foreign and domestic, with hubless drums, rotors (center hole sized 2-5/32" – 4") and composite rotors (center hole sized 4" – 6-1/4")
• Infinitely variable spindle and cross feed speed settings allow for rough and precision finish cuts
• Simple ergonomic controls are designed for minimal operator movement
• Massive tapered spindle bearings offer superior weight support during rotation
• An independent cross-feed motor eliminates the need for plastic or bronze shear gears

Motor Drive Unit 115–230 VAC, 50 – 60 hz, 1 Ph, 20 amp
Max Rotor Thickness 2-1/2"
Max Rotor Diameter 17"
Brake Drum Diameter 6"–28"
Max Load with Standard 1" Arbor 150 lbs.
Max Load with Optional 1-7/8"
Truck Arbor 250 lbs.
Spindle Travel 6-7/8"
Spindle Speed 150 rpm–200 rpm
Shipping Dimensions 62" x 49" x 36"
Shipping Weight w/ Bench/Tools 685 lbs.

Includes bench and tool storage backboards plus Standard Tooling Package:

(A) Quick-change adapter plus system
(B) Backing plate 6.75" OD
(C) Backing plate 5.25" OD
(D) Sm. cup w/ built-in spring 5.25" OD
(E) Lg. cup w/ built-in spring 6.75" OD
(F) Dbl. tapered collet 1.322" x 1.670"
(G) Dbl. tapered collet 1.362" x 1.710"
(H) Dbl. tapered collet 1.711" x 2.073"
(I) Dbl. tapered collet 2.074" x 2.440"
(J) Dbl. tapered collet 2.441" x 2.897"
(K) Centering cone 1.187" x 2.25"
(L) Self-aligning spacer 1-5/8"L
(M) Spacer 1/2"L
(N) Spacer 2"L
(O) Bell clamp 4-1/4" OD
(P) Step adapter 1" x 2"
(Q) Spring
(R) Drum silencer
(S) Universal silencer band
(T) Large wrench
(U) Large rubber silencer
(V) Small rubber silencer
(W) Small wrench
(X) Spanner wrench
(Y) Arbor/Arbor nut
(Z) Twin cutter assembly
(B1) Boring bar assembly
