Ranger 20-Ton Commercial-Grade Hydraulic Shop Press

Description

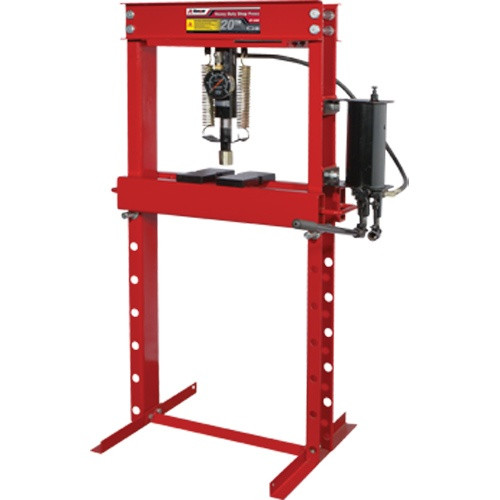

This robust 20-ton press was designed for heavy use in repair shops, but works just as well in your garage. Ideal for the removal and installation of gears, bushings and bearings, plus also excels at bending, straightening and flattening. The applications are truly endless.

• Ideal for pressing bearings, U-joints, etc.
• Hydraulic cylinder moves laterally for better versatility
• Integrated 4" diameter 20-ton pressure gauge
• Independent two-speed hydraulic pump for maximum performance
• Adjustable table height
• Heavy steel construction

Capacity: 40,000 lbs. (18,144 kg.)
Overall height: 60-1/4" (1,530 mm)
Overall width: 37" (940 mm)
Inside width between rails: 24" (610 mm)
Adjustable table height: 7-1/2" - 36-1/4" (190 mm x 921 mm)
Base dimensions: 27-1/4" x 26" (692 mm x 660 mm)
Cylinder stroke: 5-1/2" (140 mm)
Weight: 255 lbs. (shipping)

Includes 2 heavy-duty press plates.
