Powermatic Dust Collector Model PM1900TX Bag Filter

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

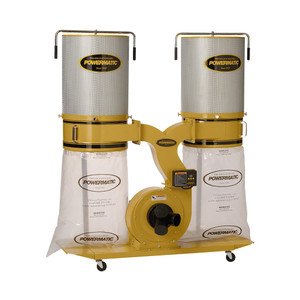

The PM1900 Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive TurboCone™ improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bags. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Multiple connection port capability makes this machine a central dust collection system for the entire woodworking shop. Four swivel casters and conveniently located handles allow for easy mobility.

• TurboCone improves chip separation and collector bag packing efficiency
• The cone eliminates premature filter clogging for sustained performance
• Remote-controlled digital timer can be programmed for up to 99 minutes
• All-metal duct construction for rigidity and improved air flow
• 30-micron filter bags for improved capture of fine dust particles
• The large impeller is powered by a 3HP motor for peak performance
• Triple 4" dust ports allow for several hoses to be attached at the same time
• Cloth collection bags with view window use a snap ring for rapid installation/removal
• 10 cubic feet collection bag capacity reduces number of bag changes.
• Tall filter bags require less cleaning due to the larger surface area

Sound Rating: 86 - 92 dB
1-Hose Connection: 8" dia.
2-Hoses Connection: 4" dia.
3-Hoses Connection: 4" dia.
Bag: 20" dia.
Filter Bag: 48"L
Collection Bag Capacity: 10 cubic foot
Collection Bag: 30"L
Air Flow @ 4": 234 cu.ft/min
Air Flow @ 8": 1,754 cu.ft/min
Static Pressure: 11.31 inch of water
Particle Size (Micron): 96% of 30 micron particles
Velocity @ 4": 5,200 foot per minute
Air Inlet: (1) at 8" or (3) at 4"
Impeller: 14" dia.
Impeller Fins: 7
Impeller Material: steel
Separator Tank Diameter: 20"
Separator Tank Height: 10"
Motor Power: 3 HP
Motor Phase: 1 Ph
Motor Voltage: 230V
Prewired Voltage: 230V
Motor Current: 15 A
Overall Dimensions: 61"L x 30"W x 94"H
Weight: 211 lbs.

Includes 2 cloth filter bags, 2 cloth collection bags with windows, remote control & 4 swivel casters.
