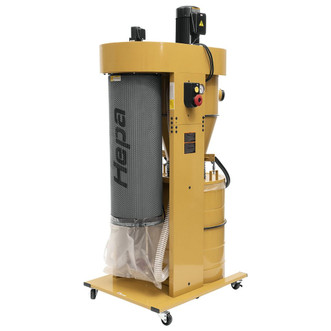

Powermatic Cyclone Dust Collector Model PM2200, 3HP, 230V

Description

The all-metal construction provides a stable base for quiet operation and minimal vibration. The included auto-cleaning HEPA filter traps 99.97% of all particles at 0.3 micron. Additional features include a one-handed drum release lever, vacuum pressure gauge, and frameless dust bag vacuum retention.

• Multiple hose mounting options: three 4" dust ports or one 8" dust port
• Powerful 3 HP motor moves 1,543 cubic feet of air per minute
• Proprietary auto-cleaning HEPA Filter technology for better filtration and longer filter life

Motor type: totally enclosed fan cooled, induction, capacitor start
Horsepower: 3
Phase: Single
Voltage: 230
Cycle: 60 Hz
Listed FLA (full load amps): 16
Starting amps: 65
Running amps (no load): 6
Start capacitor: 250MFD 250VAC
Run capacitor: 35µF 400VAC
On/off switch: Magnetic with overload protection
Motor speed: 3450 RPM
Power cord: 12AWG x 3C, SJT, 6 ft.
Recommended circuit size: 20 A
Sound emission: 78 dB at 9.84'
Remote control system: Radio (FCC approved); range up to 50'
RC transmitter battery: 2 x AA
Timer setting: 2, 4, 6, 8 hours

Inlet diameter: 8"
Inlet adaptors: 3, 4" dia.
Air Flow: 1,543 CFM
Air Velocity: 4,380 FPM
Static pressure loss (WC):2.24 inH2O
Maximum static pressure loss (WC): 14.30 inH2O
Impeler Diameter: 15.8"
Fin thickness: 14 ga.
Type: radial fin
Material: steel
Filter type cartridge: and spunbond polyester
Canister filter diameter: 14-9/16"
Canister filter length: 31-3/8"
Filter surface area: 46.82 sq. ft.
HEPA Filter efficiency rating 99.97% of 0.3 micron particles
Cleaning system: Automatic when stop button is pushed
Bag material: polyethylene
Drum collection bag size: 24-9/16" dia. x 47-1/4"L
Canister collection bag size: 15.4" dia. x 19.7"L

Steel Drum Capacity: 63 gal.
Size: 24-1/2" dia. x: 32-1/2"H
Frame: steel tubing, sheet metal
Body/housing: sheet metal, powder coated
Overall Dimensions: 54-1/2"L x 31-7/8"W x 85-1/4"H
Base: 54-1/2"L x 31-7/8"W
Weight: 370 lbs.

Includes
Remote control with 2 AA batteries
foam tape rolls
connectors and clamps
base and casters
bags and filters
hoses and hardware
drums
power plug
