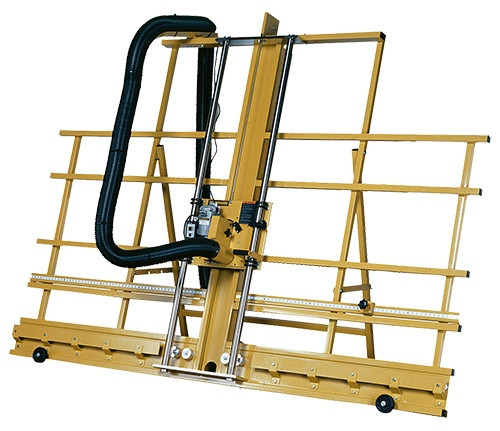

Powermatic 511 Panel Saw w/4" Dust Port

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

If you work with sheet goods, this 511 Vertical Panel Saw has plenty of power for the most demanding cuts. The carriage assembly is designed with eight unique guide roller assemblies allowing it to glide effortlessly along the stainless steel rails.

Features a powerful 3HP worm-drive motor which rotates in the carriage, adding the versatility to perform rip cuts. The solid aluminum rollers with outside support bracket assure smooth feeding of stock and perfect 90° cuts every time. This saw will handle panels up to 5' tall. It also includes horizontal and vertical scales, an adjustable stop and casters for mobility. The true counterweight system keeps the saw carriage in the desired position when loading or unloading panels. With the innovative dual dust collection ports and nylon brush surrounding the blade, this saw provides superior dust collection from the front and the rear side of the panel.

• Stainless steel guide tubes with eight guide roller assemblies provide smooth carriage glide
• Dual 4" dust ports with nylon brush surrounding blade for front & rear dust exhaust
• True counterweight system keeps the carriage where you position it while loading stock
• Solid aluminum rollers with outside support brackets for square cuts
• Casters for easy mobility
• 3HP Worm drive saw motor rotates in carriage to perform rip cuts
• Heavy-duty welded one-piece steel frame prevents vibration, ensures solid support
• Mfr.'s 5-year warranty

Type: Vertical
Voltage: 120
Amps: 13
Blade Diameter: 8"
HP: 3
Phase: 1
Arbor Diameter: 5/8"
Maximum Cut Thickness: 1-1/2"
Maximum Cross Cut Length: 62"
Maximum Rip Length: Unlimited
Dust Port Outside Diameter: 4"
