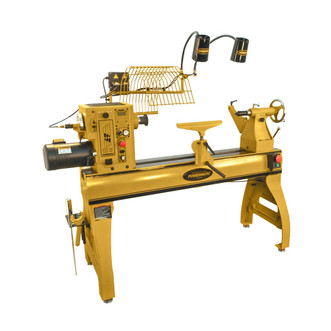

Powermatic 24" Lathe

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

Model 4224B lathe expands the limits of creative possibility and takes your passion to a whole new level. With newly designed, top of its class features, the 4224B pushes the limits of design, innovation and durability.

• Sliding headstock w/electronic variable speed & digital RPM readout for accurate speed adjustments
• Spindle lock & built in spindle indexing on headstock for drilling hole patterns, routing flutes & other equally spaced features
• Vacuum system provides quick method of chucking bowl blanks
• 15-amp quad receptacle for easy reach of powered accessories
• Two 100W task lamps provide ideal lighting
• Air nozzle w/quick connect for clearing dust/chips
• Set of dead centers which hold a spindle for visual comparison
• Laser etched quill is self-ejecting
• 2-position mount for the optional bed extension
• Brass tipped knockout bar concentrates action in sliding handle; brass tip will not damage drive centers
• Attached tool caddy allows convenient access to centers, wrenches, etc.
• Tailstock has internal storage for additional accessories
• Chrome trimmed handwheels are ergonomic for a comfortable feel
• Magnetic-backed remote on/off switch can be moved anywhere on the machine

220V, 3 HP, 1 or 3 Ph.
Speeds 40 - 3,500 rpm.
Spindle 1-1/4" x 8 TPI nose, 5/8" hole.
Headstock & tailstock taper MT-2. Hole through tailstock 3/8" Ram travel 4-1/2".
Capacity 24" swing over bed, 19-1/4" swing over toolrest base.
Distance Between Centers 42".
Outboard Turning 88"
Centerline of Spindle to Floor 44"
Headstock Movement full length of bed
Indexing Positions 98
Style leg stand
Bed Construction cast iron
Overall Dimensions 68"L x 27"W x 31-1/2"H. Weight 948 lbs.

Includes 2 lamps, spur and live centers, air blow gun with hose, vacuum adaptor, knock-out rod, tool rest, tool caddy, guard and face plate, tools and hardware package.
