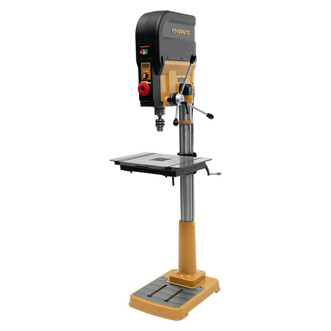

Powermatic 20" VS Drill Press Model PM2820EVS, 115V

Description

This 20" variable speed drill press has gear-driven power that consistently and efficiently transfers torque for any project in any material. The removable cast table has a 45° rotation and the handles can be moved right or left for easily working small or large projects. A high-visibility laser pinpoints the drilling location for accuracy while the integrated LED light reduces shadows.

Motor: 1 HP, 115V, 8 Amps, 1 Phase
Spindle Speed: 150 - 3,600 RPM, Variable
Quill Diameter: 2.6"
Spindle Distance to Base: 45"
Spindle Distance to Table: 23"
Quill Diameter: 2.6"
Spindle Distance to Base: 45"
Spindle Distance to Table: 23"
Spindle Taper: MT2
Spindle Travel: 6"
Swing: 20"
Table Size: 20-1/2"L x 15-1/2"W
Table Tilt: 90° L/R
Base Size: 22-3/4" x 16-3/8" x 2-3/4"
Base Work Table: 11.81" x 12.05"
Chuck Distance to Base: 41-1/4"
Chuck Distance to Table: 19-1/4"
Chuck Size: 5/8"
Column Diameter: 3-3/8"
Fence Size: 19-3/4" x 2-5/8"
Overall size: 24.5"L x 20.5"W x 71.85"H
Weight 337 lbs.

Includes
fence
work stop
handles
table
arbor
chuck and key
wrenches
manual
