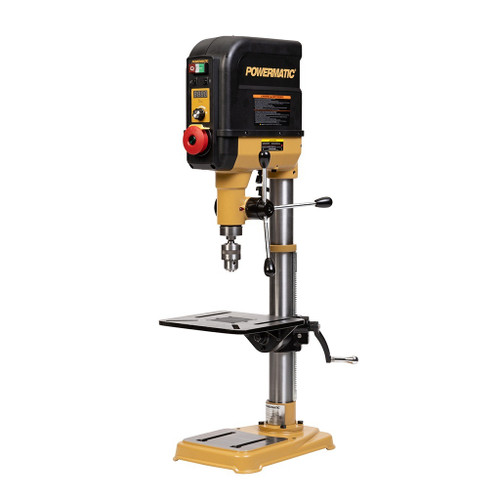

Powermatic 15" Benchtop Drill Press, 115V

Description

Gear-driven spindle ensures consistent torque throughout operational range and minimizes inertia. Large LED digital read out offers instant RPM feedback. Equipped with laser cross hairs to pinpoint exactly where the bit meets the workpiece.

• Electronic variable speed from 250-3,000 RPM
• 5" total quill travel

Motor: Brushed DC
Horsepower: 3/4
Phase: Single
Voltage: 120
Cycle: 60Hz
Listed FLA: 11.6
Laser: Yes
Work lamp: LED
Swing: 15"
Chuck style and shank capacity: Keyed / MT2-JT3, 5/8"
Quill travel: 5"
Scale display: 4" (spindle travel per one revolution of handle)
Depth setting: 3.7"
Quill diameter: 2.04"
Speed range (RPM): 250 - 3000
Maximum spindle to table: 18.5"
Minimum spindle to table: 1.77"
Maximum chuck to table: 11.02"
Maximum spindle to base: 22.83"
Maximum chuck to base: 18.464"
Readout: Digital
Speed Selection: Dial
Table size: 12.59" x 11.614"
Table tilt: 0 to 90° L and R
Table rotation around column: 360°
Table insert: 3.7" x 3.9"
Base size: 17.9" x 11.74" x 2.28"
Column diameter: 2.87"
Head, table, base: cast iron
Column: steel
Size: 14.17" x 23.22" x 47.24"
Weight: 138 lbs.

Includes
chuck
accessories
tools
