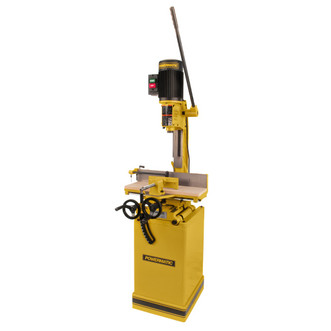

Powermatic 1 HP Hollow Chisel Mortiser

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

Heavy-duty cast iron construction and powerful 1 HP motor for the most demanding jobs. The head is mounted using adjustable gibs for years of trouble-free service.

• Heavy rack-and-pinion gear system with spring-loaded 6-position adjustable handle for movement
• Depth and length stops provide uniform finish
• Large work support table adjusts from 0° to 35°, L&R, front to back
• Adjustable linear stops and flip down stop provide precision repeatability
• Quick adjust clamp secures workpiece and will swivel for angled pieces
• Heavy enclosed stand with storage shelf

115/230V, 1 HP, 1 phase, 1,725 RPM spindle speed.
Chuck size 1/2".
Chisel size 1/4" to 3/4".
Chisel shank size 5/8", 3/4", 1-1/8".
Head travel 6".
Chisel to fence 4".
Table size 10" x 20".
Table movement: longways 15-1/2", crossways 4".
Base 14" x 16".
Tool size 21-1/4"L x 21-5/8"W x 61"H.
Tool weight 277 lbs. (shipping).

Includes
work stop
depth and length stops
drill bit adapter
quick release vise
chuck extension adapter
chuck key
wood table and enclosed stand

Please specify voltage. 115V will be shipped if not specified.
