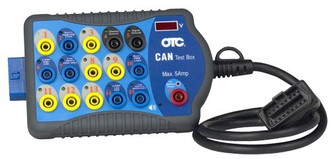

OTC CAN test Box

Description

OTC  Connect, detect, monitor voltage and more. Use this tool for diagnosing electrical faults and CAN bus line activity. Check power and ground circuits, check active protocol lines, or connect a multimeter or oscilloscope for detailed signal analysis.

Breakout Box and Protocol Detector:

• Connects between Diagnostic Link Connector (DLC) and scan too
• Detects data and protocol communication
• Monitors system voltage - Display and high/low alarm
• Connect leads for increased diagnosis, analysis, and monitoring

Useful Functions:

• Verify ECU activity
• LEDs at pin-out display signal detection, Flashing LEDs for ECU activity
• Monitoring of OBDII data lines
• Probe lines with scope or multimeter for detailed signal information
• Check & monitor battery voltage
• Continuous numeric display or voltage
• Alarm warning when voltage drops below 11.6V or rises above 15.2V

Operating range: 7.0–20.0 VDC input
Maximum load: Up to 5.0 amp output
Overload protection: Yes; PTC fuse (self-healing)
Monitoring voltages: Below 11.6V beeper ON; higher than 15.2 V beeper ON
Volt displays: 3-digit LED (resolution: 0.1 V)
Banana sockets: 16 outputs × 4.0 mm diameter with LED lamp indications
Protocols detected: PWM (J1850), VPW (J1850), ISO 9141-2, DIS/ISO 14230-4, CAN bus (J-2284)
