OTC 750 Series Digital Multimeter
OTC
SKU: M693423 3980- SKU:
- M693423 3980
- Availability:
- Ships direct from manufacturer. Lead times may vary.
Description
Features powerful automotive test functions (frequency, duty cycle, diode and continuity tests) and automotive specific tests (true RMS, RPM, dwell, pulse width, temperature, backlight, RS232 and min./max.). It's CATIII and compatible with Hybrid vehicle systems.
- Diode Test
- Continuity Test
- Auto Range
- Data Hold
- Relative Change
- Backlight
- Auto Power Off
- CATIII 1000V
- Min/Max
Specifications:
Frequency: 1Hz ~ 10MHz ± 0.1%
RPM (Direct Test with Leads): 0 - 10,000
RPM (with RPM Pick UP): 0 - 10,000
DWELL Angle: 0 - 360° (1 - 12 CYL)
Duty Cycle: 0.1% ~ 99.9% ± 2.5%
Pulse With-ms (negative): 1 ~ 999ms
Temperature: -50°C to 400°C, -58°F to 752°F
DC Volts: 400mV/4/40/400V ± 0.5%, 1000V ± 0.8%
AC Volts: TRMS - 4/40/400V ± 1.5%, 400mV/750V ± 2%
DC Amps: 400/4000μA ± 2%, 40/400mA ± 1.5%, 4/10A ± 2%
AC Amps: TRMS - 400/4000μA ± 2%, 40/400mA ±2%, 4/10A ± 2.5%
Resistance: 400Ω/4/40/400kΩ ± 1%, 4/40MΩ ± 2%
Capacitance: 40nF/400nF/4μF/40μF ± 3%, 400μF/4000μF ± 20%
Dimensions: 10" × 12.5" × 3.5"
Shipping weight: 2.5 lbs.

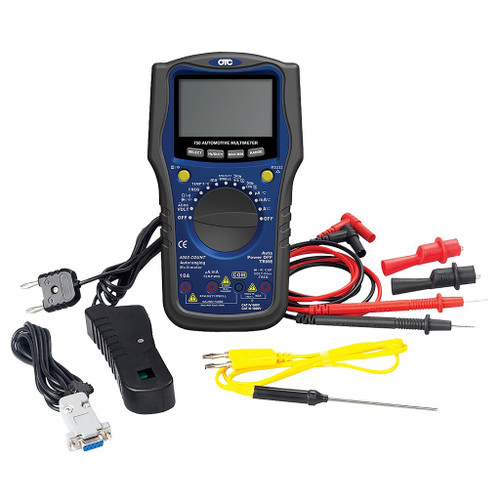

Includes RS232 and cable, red and black test leads, alligator clips, RPM pick-up adapter, temp probe adapter, PC cable and software, plus canvas case.
