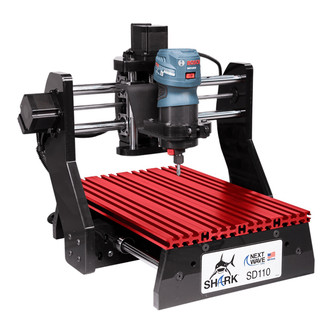

The go-to woodworking tool for custom parts, joinery, precision drilling functions, or all things decorative. Features a longer 12" x 18" table designed for projects such as carving plaques or signs, ornamental boxes, and precision parts machined from wood, soft metals, or plastics. Compact size easily fits on one end or under your workbench.
- Using the included 3D carving capability and a 3D model library, you can cut beautiful relief carvings, intricate inlays, and create exquisitely detailed engravings with ease. The incredible accuracy allows you to even engrave custom circuit boards.
- Projects can begin using the convenient color touch screen Pendant interface, eliminating the need for a computer. Using the included VCarve Desktop Design Software, you can create your project and transfer it to a USB drive which can then be plugged directly into the LCD pendant.
- For more challenging projects and extended versatility, you can run the machine from your computer taking advantage of the exclusive patented Virtual Zero Unlimited programming that will adjust your design to fit curves and angles that would be virtually impossible on other brands of machines.
- Virtual Zero Unlimited, patented Next Wave exclusive software, allows you to map the surface of your material by taking an unlimited number of reference points. The program then uses these points to auto-adjust the G-code to conform to the actual surface of your material. This eliminates problems caused by a warped or bowed work piece and allows you to maintain a constant cutting depth.
- Aluminum interlocking slotted table track for highly customizable clamping.
- Made in USA
Table dimensions: 12" x 18"
XYZ travel: 12" x 13" x 3"
Overall dimensions: 19-1/2"W x 20-1/2"L x 18"H
Weight: 60 lbs.
Includes
VCarve Desktop Design Software
Ready2Control Basic software
2 hold-down clamps
Ships fully assembled.
Requires a PC Computer with a USB port, not included.
Requires Bosch 1 HP Model PR20, Bosch 1.25 HP, DeWalt 611, Porter Cable 450, or similar style palm router, sold separately.
Next Wave CNC
