Next Wave CNC

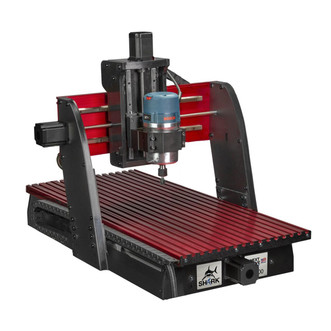

The go-to woodworking tool for custom parts, joinery, precision drilling functions, or all things decorative. This machine features a 16" x 36" table, an extruded aluminum router mount to support larger routers or Next Wave’s water-cooled spindle system, and robust linear gantry rails. It can be Pendant or computer-controlled and is perfect for carving plaques, signs, ornamental boxes, and precision parts machined from wood, soft metals, or plastics. This Shark CNC router uses Next Wave CNC's included 3D carving capability and a 3D model library so you can cut beautiful relief carvings, intricate inlays, and create exquisitely detailed engravings with ease.
Projects can begin using our convenient touch screen Pendant interface, eliminating the need for a computer. Using the included VCarve Desktop Design Software, you can create your project and transfer it to a USB drive which can then be plugged directly into the LCD pendant. For more challenging projects and extended versatility, you can run the machine from your computer taking advantage of the exclusive patented Virtual Zero Unlimited programming that will adjust your design to fit curves and angles.
Made in USA.
Table dimensions: 16" x 36"
XYZ travel: 13" x 25" x 7"
Overall dimensions: 24-1/4"W x 36"L x 24-1/2"H
Weight: 147 lbs.
Includes
Color Touch Screen pendant controller system
Virtual Zero Unlimited software
VCarve Desktop Design software
Ready2Control Basic software
Anti-backlash, wear-compensated leadscrews on all axis
Interlocking rigid aluminum table with virtually unlimited clamp positioning
Aluminum gantry backplate for heavy machining capabilities.
Aluminum router mounting clamp
Steel encased gantry legs for increased rigidity
Automatic router on and off control
USB interface
2 hold-down clamps
carbide V-bit
Ships in 2 boxes.
Requires a PC Computer with a USB 2.0 port, not included.
Built to handle larger 2.25 HP routers with 3.5” barrel diameter like Dewalt 618, PC 890, Bosch 1617 (router sold separately).
