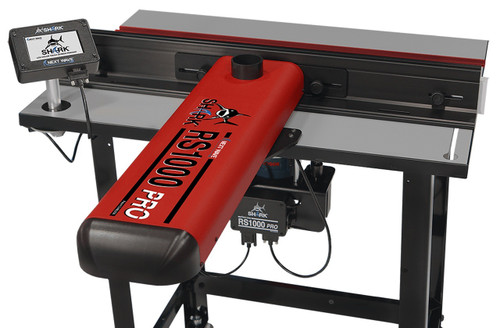

Next Wave RS1000 Shark CNC For Router Table

Description

Transforms nearly any router table into a full-fledged 2 axis CNC, allowing you to adjust your router fence or bit height by as little as .001". Comes with preloaded apps to do over a dozen common router and specialty joinery functions such as box joints, dovetail, dado, lock miter, and many more. Made in the USA.

• Router fence and lift move accurately in direct relationship to the bit with movement as little as .001".
• Full 12” router fence travel for larger projects and 3-1/2" of router lift travel to accommodate spindles.
• Reduces setup time up to 90%.
• Toggles between standard, metric, and decimal measurements so you don’t have to convert dimensions.
• Programmable memory locations for commonly used settings.
• Works with any standard 3.5" router motor.

Standard plate size: 9-1/4" x 11-3/4"
Weight: 65 lbs.

Includes
Onboard processor with Color LCD pendant control
Removeable table inserts for larger bits
Integrated 2-1/4" dust port
Works with almost any router table (not included)
Touch-off plate
Fence
Power supply adapter

Assembly required. 3.5" router motor and router table, not included.
