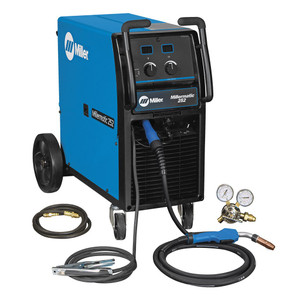

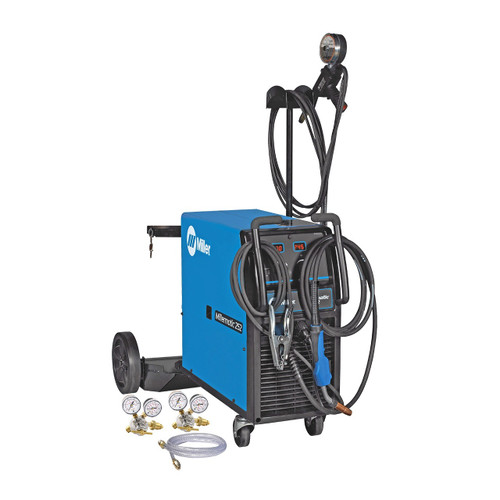

Millermatic 252 MIG Welder Spoolgun Aluminum Package 200(208)/230V

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904.

Large digital front panel with built-in digital timers menu enables operator to preset voltage and wire feed speed. Standard run-in, pre/postflow, burnback, spot/delay (stitch) timer menu. Push/pull gun is compatible with Spoolmate 200 Series spool gun with wire feed speed control on the gun, Spoolmatic 15A, or 30A spool gun. This saves time by reducing trips back to the machine. This angled, dual-gear driven, cast aluminum drive system features no-tool, quick-change reversible drive rolls and an easy-to-set, scaled tension knob.

• Auto Gun Detect™ allows the operator to pull the trigger on the MIG gun, spool gun, or push/pull gun and it automatically detects and recalls the voltage, wire feed speed, and timer of the active gun.
• EZ-Change™ low cylinder rack allows operators to easily roll cylinders on and off of rack with no need to lift cylinders.
• EZ-Access™ flip-down consumable compartment and parameter chart makes it easy to set weld parameters quickly and accurately.

Amperage Range: 30 A - 300 A
Material Thickness: Aluminum 14 ga. (1.9 mm) - 3/8" (9.5 mm), Mild Steel 22 ga. (0.6 mm) - 1/2" (12.7 mm)
Weldable Metals: Stainless Steel, Steel, Aluminum
Input Voltage: 208 V, 220/230/240 V
Input Phase: 1-Phase
Input Hz: 60 Hz
Current Type: DC
Rated Output: 200 Amps at 24 VDC, 60% duty cycle,250 Amps at 26.5 VDC, 40% duty cycle
Max Open Circuit Voltage: 38 VDC
Wire Feed Speed: 1.3 m/min - 17.8 m/min, 50 IPM - 700 IPM
Wire Diameter: Stainless/Solid Steel 0.023"- 0.045" 0.6 mm-1.2 mm, Flux Cored 0.03"-0.045" 0.8 mm-1.2 mm
Spool Size: 12" (305 mm)
Portability: Running Gear / Cart (Standard)
Weld Output: CV
Overall size: 28"W x 30"H x 40"L
Weight: 205 lbs.

Includes
15' 250-amp MDX™-250 MIG gun with Bernard® AccuLock™ MDX consumables for .030/.035" wire
10' power cord and plug
10' work cable and clamp
Argon mix regulator/flow gauge and hose
Extra contact tips
Factory-installed running gear with EZ-Change™ Single Low Cylinder Rack .030/.035" in reversible drive rolls
Spoolmatic 30A #130831
Dual EZ-Change™ Low Cylinder Rack with Elevated Gun and Cable Rack #300337
