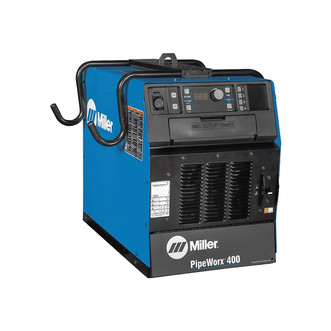

Miller PipeWorx 400 Welding System, 230/460V

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904.

Multiprocess pipe welding system delivers more arc-on time, fewer weld defects or rework, superior weld quality, and less training. Includes conventional Stick, DC TIG (Lift-ARC™ or HF Start), Flux-Cored, MIG, RMD®, and Pulsed MIG welding processes. These are optimized to deliver superior arc performance and stability, specifically for root pass, fill, and cap pipe welding.

Clearly labeled controls make it easy to set up a new weld process in just a few steps. Front panel features backlit controls only for adjustable settings to minimize confusion. Memory feature stores 4 programs for each selection: Stick, DC TIG, and MIG (left and right side of feeder).

No need to manually switch polarity or cables and hoses between processes. Simply push a process selection button to choose a welding process. PipeWorx 'Quick-Select' technology automatically selects the welding process, the correct polarity, cable outputs, and welding parameter.

Wind Tunnel Technology™ and Fan-On-Demand™ provide system protection in a dusty shop environment. Innovative cable and gun storage manages clutter for a cleaner, organized weld-cell area.

Manufacturer's 3-year warranty.

Industries: Shipbuilding, Pipeline, Construction and Fabrication
Weldable Metals: Specialty Metals, Stainless Steel, Steel
Applications: Fabrication, Pressure Vessel
Input Voltage: 220/230/240V, 460/480V
Rated Carbon Diameter: 5/16" (7.9 mm)
Input Phase: 3-Phase
Input: 50/60 Hz
Current Type: DC
Max Open Circuit Voltage: 90 VDC
Portability: Lift Eye
Weld Output: CC / CV
Overal size: 31.75"L x 19.5"W x 28"H
Weight: 225 lbs.

Includes
Cable Hangers
Short gas hose
memory card

Power cord not included.
