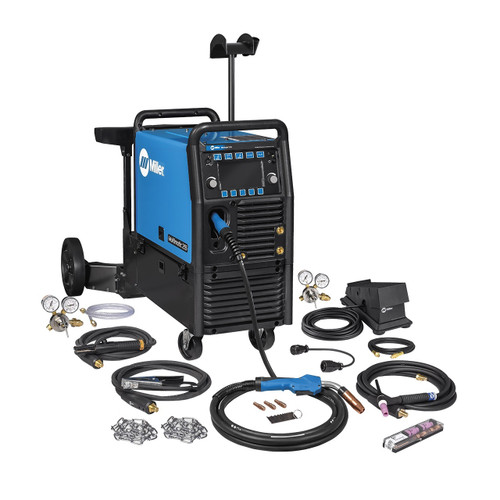

Miller Multimatic 255 Welder, 208-575V, with TIG Package

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904.

Auto-Set™ Elite offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels. Program mode allows you to easily save and recall common weld settings for higher productivity and consistent quality by welders of all skill levels with minimal teacher interaction. AccuLock™ liner loads from the front and locks at the front and back to ensure proper alignment for flawless wire feed path. Rubber overmold and ball-and-socket handle design improves grip and reduces welder fatigue. Industrial Bernard AccuLock™ S contact tips provide superior spray and pulsed MIG arc performance.

• Capabilities: MIG, Pulsed MIG, Stick (6010), DC Lift Arc TIG, and DC Pulsed TIG
• 7" color LCD display ensures proper machine setup and parameter selection
• Provides full output when powered by generators with 12,000 watt output or higher

Processes: Stick (SMAW), TIG DC (GTAW-DC), Flux Cored (FCAW),MIG (GMAW), Multiprocess
Amperage: 5 A - 350 A
Weldable Metals: Aluminum, Stainless Steel, Steel
Material Thickness: Mild Steel 22 ga.-1/2" (MIG), Mild Steel 24 ga.-3/8" (TIG), Mild Steel 16 ga.-5/16" (Stick), Aluminum 18 ga.-1/2" (MIG)
Input Voltage: 208V, 220/230/240V, 460/480V, 575V
Input Phase: 1-Phase
Input Hz: 50/60 Hz
Input Amperage: 34.7
Current Type: DC
Max Open Circuit Voltage: 81 VDC
Weld Output: CC / CV

Includes
power source with 10' cord
15' 250-amp MDX™-250 MIG gun with Bernard® AccuLock™ MDX consumables for .030/.035" (0.8/0.9 mm) wire
10' cable with electrode holder and 50 mm Dinse-style connector
10' work cable with clamp and 50 mm Dinse-style connector
flow gauge regulator and gas hose for argon or AR/CO2 mix
extra contact tips
.035/.045" (0.9/1.2 mm) reversible drive rolls
material thickness gauge
EZ-Latch™ dual cylinder running gear with elevated gun and cable rack
Multimatic 235/255 TIG kit
Two chains to secure gas cylinders
