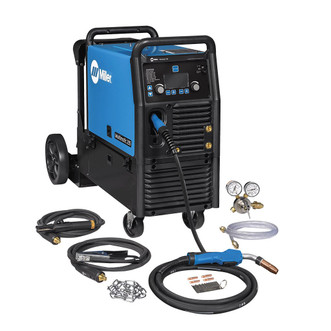

Miller Multimatic 235 Multiprocess Welder with EZ-Latch Running Gear, 240V

SKU: M567143 951846
Write a Review
$3,611.00
SKU:
M567143 951846
Availability:
Ships direct from manufacturer. Lead times may vary.

Frequently Bought Together

Please choose options for all selected products

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers. For other product options, please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

Built for professionals in the manufacturing/fabrication, MRO and construction fabrication and education segments, the Multimatic 235 allows welders of all skill levels to be more efficient for all their MIG, flux-cored, stick and DC TIG welding needs. Setup is quick and easy, letting operators have faster up-time and weld with confidence.

Features EZ-Latch™ running gear. Operators no longer need to use lift truck to load machine and running gear into the truck. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability

MDX™-250 MIG gun with AccuLock™ MDX consumable system features a dual-locked, front-loading liner that optimizes wire feedability. Install AccuLock contact tips with a single turn. AccuLock liner locks at front and back of gun to align with contact tip and power pin for a flawless wire feed path. Durable, ergonomic handle with overmolding improves grip and comfort. Ball-and-socket handle with rear swivel for increased gun maneuverability while reducing welder fatigue.

  • Multiprocess capabilities: MIG, flux cored, DC stick, DC Lift-Arc™, TIG and pulsed TIG welding
  • Auto-Set™ Elite offers predefined weld settings fore ease of use for operators of all skill levels
  • AccuLock™ MDX consumable system optimizes wire feeding
  • Angled heavy-duty aluminum 2-drive-roll system significantly improves wire feeding
  • Easy-to-understand interface with 4.3-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time
  • Mfr.'s 3-year True Blue warranty
miller welding resources for educators

Specifications

Multimatic® 235 Multiprocess Welder with  EZ-Latch™ Running Gear - 240V
Weldable Metals: Aluminum, Stainless Steel, Steel
Input Voltage: 208V, 220/230/240V
Input Phase: 1-Phase
Input Hz: 50/60 Hz
Current Type: DC
Max Open Circuit Voltage: 54 VDC
Portability: Handle(s) and Running Gear
Weld Output: CC / CV

Input Power 240V, single-phase
Rated Output
  MIG: 170 A at 22.5 V, 60% duty cycle
  Stick: 150 A at 26 V, 60% duty cycle
  TIG: 180 A at 17.2 V, 60% duty cycle
Amperage Range 20–235 A
Net Weight Machine with running gear: 127 lb. (58 kg)

Industrial Applications
Manufacturing and fabrication
Plant maintenance shops
Construction fabrication
Education

Processes
MIG (GMAW) 24 ga.–3/8" steel,  18 ga.–3/8" aluminum
Flux-cored (FCAW)
DC stick (SMAW) 16 ga.–3/8" steel
DC Lift-Arc™ TIG (GTAW) 24 ga.–1/4" steel
Pulsed TIG (GTAW-P)

What's in the box

Power source with 7' (2.1 m) power cord
15' (4.5 m) 250-amp MDX™-250 MIG gun with Bernard® AccuLock™ MDX consumables for .030/.035" (0.8/0.9 mm) wire
10' (3 m) cable with electrode holder and 50 mm Dinse-style connector
10' (3 m) work cable with clamp and 50 mm Dinse-style connector
Flow gauge regulator and gas hose for argon or AR/CO2 mix
Extra contact tips
.030/.035" (0.8/0.9 mm) reversible drive rolls
EZ-Latch™ single-cylinder running gear
Chain to secure gas cylinder
Material Thickness Gauge
