Miller Electric
Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904.

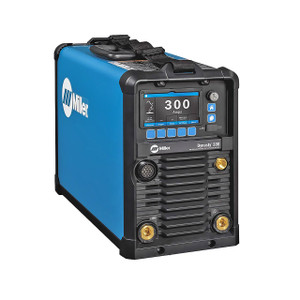

Can weld up to 3/8" thick material. The AC/DC TIG/Stick power sources feature an energy-efficient inverter design and Auto-Line™ technology.
LCD display with intuitive interface ensures proper machine setup and parameter selection with informative on-screen explanations and dynamic images. Program memory allows easy naming, saving, and recalling of common weld settings. Pro-Set Feature (professional settings) eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience, and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for balance, frequency, pulse, and DIG parameters. Locks and limits provide control of the weld parameter ranges minimizing deviations from the welding procedure specifications. USB port provides the ability to easily update software, back-up settings, and transfer saved weld programs from one unit to the next.
QuietPulse™ is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise. For portability and reliability, Auto-Line™ Technology inverter power supply allows for any single-phase input voltage hookup (208–600 V) with no manual linking. Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. HotStart™ adaptive control provides positive arc starts without sticking.
Manufacturer's 3-year warranty.
Applications: Aluminum Welding
Processes: Air Carbon Arc Cutting (CAC-A), Stick (SMAW), TIG (GTAW), TIG AC (GTAW-AC), TIG DC (GTAW-DC)
Industries: Shipbuilding, Manufacturing, Heavy Equipment, Railcar, Aerospace, Construction and Fabrication
Material Thickness: Aluminum 0.012" (0.3 mm) - 3/8" (9.5 mm), Steel 0.004" (0.1 mm) - 3/8" (9.5 mm)
Weldable Metals: Aluminum, Specialty Metals, Stainless Steel, Steel
Input Voltage: 208V, 220/230/240V, 380/400V, 460/480V, 575/600V
Input Phase: 1- and 3-Phase
Input: 50/60 Hz
Current Type: AC / DC
Max Open Circuit Voltage: 60 VDC
Amperage Min: 1 A
Amperage Max: 300 A
Portability: Running Gear / Cart (Standard)
Weld Output: CC
Overall size: 39.5"L x 8.5"W x 34.75"H
Weight: 147 lbs.
Includes
Coolmate 1.3
Small Runner Cart
Adjustable Shoulder Strap
8' primary cord
