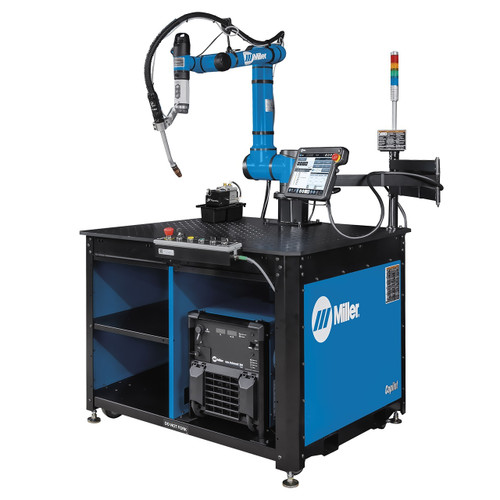

Miller Copilot Auto Deltaweld 350 Welding System with Touch Sensing & Seam Tracking

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904.

This entry-level collaborative welding cell allows for the operator to load and unload from a single station that can be shared with the robot envelope. This is great for new-to-automation welding challenges and for experienced robotic welders who will address high-mix, low-volume operating scenarios.

AccuGuide positioning control allows the welder to fine-tune the position of the torch during programming instead of only using the free-jogging feature of the cobot.
IntelliSet setting management system reduces the steps required while programming by simplifying the process of choosing or revising settings.
Touch sensing provides a means of detecting welding workpiece location by using voltage sensing along with programmed torch "sweeps" to positively locate the workpiece position prior to welding.
Seam tracking corrects the robot arc path to accommodate subtle variations in the workpiece geometry. Using feedback from the arc, combined with a weave pattern, the robot can compensate for subtle irregularities from the intended weld path to successfully weld the joint with proper bead appearance and penetration.

• Welding-centric software and programming is easy to use.
• Portable operator pendant used for starting and stopping programs in production. Teach pendant carriage allows for convenient hands-free viewing. Programming puck reduces the need to interact with the pendant.
• Tregaskiss® TOUGH GUN® CA3 robotic MIG gun with AccuLock™ consumables is engineered for accurate, reliable, and repeatable performance that maximizes production uptime and throughput.
• Weld-ready tool surface is 48" x 48" and outfitted with 5/8" tooling holes that are spaced 2" x 2" in a 42" x 30" pattern on center.
• Andon light stack communicates messages to operator, including if system is in auto or teach mode, robot is moving, and error.
• Wire drive mounted behind cobot works with spool holder or bulk wire.
• Full complement of capabilities with Auto Deltaweld™ or Auto-Continuum™. GMAW power sources with Accu-Pulse® and waveform capability. Systems with Auto-Continuum add Versa-Pulse™ and RMD® advanced processes.
• Copilot is mounted on caster wheels for easy positioning and placement.
• Shelves for storage or to hold extra components.
• Ships partially assembled with a video setup guide and instructions.
• Manufacturer's 1-year warranty.

Input Power: 208/230/460 V, 3-phase, or 230 V, 1-phase, 60 Hz
Rated Output: 350 A at 60% duty cycle
Wire Feed Speed: 50–780 IPM
Processes: MIG (GMAW), Accu-Pulse®, Versa-Pulse™* and RMD®* (*With Auto-Continuum power source only)
Applications: Advanced Welding, Aluminum Welding, Automotive Welding, Boat/Yacht, Fabrication, Industrial Welding, Outdoor, Stainless Steel, Structural Welding, Welding Education and Training, Welding Projects
Portability: Fork Pockets, casters
Payload Capacity: 1,500 lbs. with feet, 750 lbs. with casters
Overall size: 48"W x 52"D x 84"
Approximate shipping weight: 1,700 lbs.

Includes
TOUGH GUN® CA3
robotic MIG gun
integrated welding table
Strong Hand Tools® kit
Touch Sensing
Seam Tracking
all required interconnecting cables
