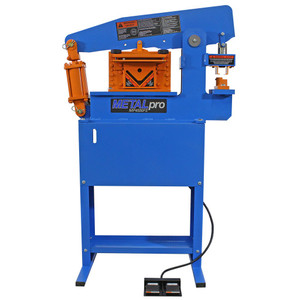

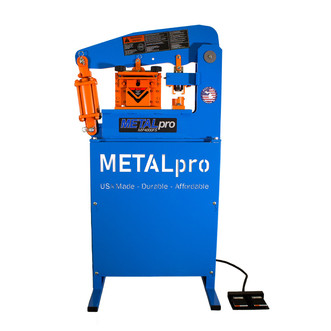

MetalPro 40-Ton Ironworker

Description

For an entry-level ironworker with 40 tons of professional capabilities, look no further. This machine was designed to be efficient and cost-effective. There's no fumbling around with hand levers or changing blades and jigs for cutting. It comes equipped with a 6" 3-in-1 cutting shear, footswitch control, and punching station - all run on 110 volts!

Complies with ANSI B11-8 standards. Meets American National Safety Standards for Ironworkers.

• 3-in-1 Shear: One quick set up can handle flat bar, round, square and angles. All parts and blades are made from high-grade steel, heat treated and ground.
• 40 Ton Punch Station: Arrives ready to punch with die holder, stripper and punch retaining nut. Can be used with notcher, square notcher, custom shape punching and forming operations. Punch ram and retaining nut are heat treated and ground for longevity.
• Power Cavity: Large cavity spans 11" x 16" and can handle 20 tons centered and 40 tons at the punch. Works with a variety of accessories including shear, brake, punch station and notchers.

Motor: 110V, 1-1/2 HP
Speed: 6-8 SPM
Max Punch Tonnage: 40 US Tons
Throat Depth: 3-3/4"
Notcher: 1/4" x 1-1/4" x 2"
1/2" Punch Capacity: 1" Mild Steel
8" Shear Capacity: 1/5" Mild Steel
Pipe Notcher-Sched 40: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"

Shear
Flat bar: 3/8" x 4" and 1/4" x 6"
Angle: 1/4" x 3" x 3"
Round: 3/4"
Square: 5/8"
8" Brake: 20 Tons
Hydraulics: 2,500 PSI
Oil Capacity: 1.5 US Gallons
Overall Size: 30"L x 24"W x 55-1/4"H
Weight: 475 lbs.

Includes shearing station, punch station and foot switch.

Notcher, pipe notcher, 8" brake, sold separately. All other accessories including individual punches, sold separately.
