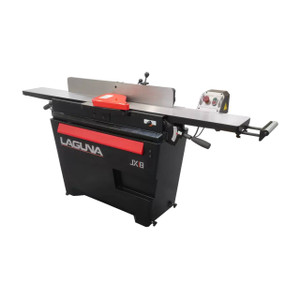

Laguna 8" JX8 Quadtec Jointer, 220V

Description

Table depth adjustments travel along an arc to keep the same distance to the cutterhead through its travel. Knee stop uses a body-length bar at knee height to shut off the jointer. Redesigned body includes a toe-kick to allow the user to position themself closer to the machine tables and to move safer and easier along the length of the machine. Infeed tables are fitted with pull-out support roller to help support longer materials. The ShearTec II 6-row carbide insert cuttherhead produces a superior surface finish on all woods. Knives and fasteners have a T-step design to maximize clamping force on the knives, preventing knife cracking and chatter. The 4-sided carbide insert knives produce a shear cut for flawless results, and can be rotated for a new cutting edge without a knife setting jig. Deep grooves make the cutterhead very quiet and improve shaving ejection.

• Built-in wheels
• Cast-iron tables and fence
• 4-sided solid carbide inserts with T-shoulder

Motor: 220V 3HP 1 Phase 60hz/12 Amp
CSA: Yes
Bed Size: 8" x 72"
Infeed Table Pull-Out Extension: 8"
Rabbetting Capacity: 1/2"
Fence Size: 38" x 4-3/4" Cast Iron
Fence Tilt: ±45/90°
Max. Depth Of Cut: 1/8"
Table Height From Floor: 31"
Safety Bar Shut-Off: Yes
Bracket To Mount Light: No
110V Outlet For Light: No
Bracket To Mount Feeder: No
Dust Port Diameter: 4"
Plug (NEMA 6-20P): Yes
Cutterhead Insert: 54 x 4-Sided Carbide, 6 Row
Cutterhead RPM: 5,500
Cutterhead Diameter: 3-1/8"
Bed Adjustment: Parallelogram
Dimensions Set Up (Approx.): 75-1/2" x 26-1/2"
Base Footprint Dimensions: 32-1/2" x 15-1/2"
Weight: 458 lbs.

Includes
2 push blocks
wrenches
