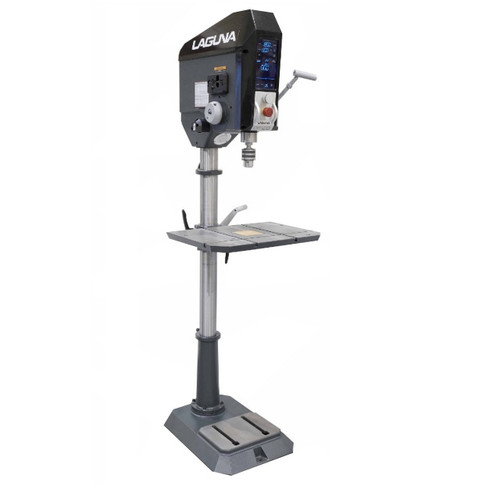

Laguna 20" Drill Press

Description

Engineered for industrial-grade performance, at its robust motor delivers constant torque across a full speed range of 60 to 3,600 RPM, making it perfect for the most demanding applications in wood, metal, plastics, and other material applications. The Touch Screen Smart Panel provides real-time RPM, Load, and Quill Depth, enhancing functionality and aesthetics. The Auto-Start function activates the drill press when the quill is lowered and stops it when raised. Achieve perfect, repeatable drilling depth with the electronic depth setting or mechanical depth stop. The Auto Reverse function is also a standout feature, exclusively used to reverse the tap when it reaches the preset depth.

• Intuitive interface with blue LCD digital readout
• Constant torque with forward and reverse functions
• Starts and stops with the movement of the quill
• Electronic depth setting
• Chuck key holder with a sensor that locks out Auto-Start function during bit changes
• Five programmable speed and depth settings
• 3 T-slots and 10 clamping holes
• Onboard 5W LED for optimal visibility
• Crosshair Lasers ensures precise material positioning
• Modern Design: Sleek aesthetic from headstock to table control handles
• Displays in Fractional Inch, Decimal Inch, or Decimal Millimeter
• Cross Hair Laser Material Positioning
• 6' Power Cord
• Audible Button Confirmation Tone

Motor: DC Brushed PWM (Pulse Width Modulation)
Power: 1.5 HP
Amps: 15
Frequency: 60 Hz
Wheel Speed: Electronic Variable 60 – 3,600 RPM Forward / Reverse
Table: 15" x 22"
Table Movement: +/- 90° Tilt
360° Degree Swivel around column
Power Transfer: Poly-groove Drive Belt
Machine Control: LCD Touch Screen Smart Panel
Column Diameter: 3.15"
Memory Settings: 5
Swing: 20"
Spindle Taper: MT2
Quill: 6" Travel – 2.6" Diameter
Chuck Capacity: 5/64" - 5/8"
Spindle to Table: 30" Max
Spindle to Base: 49.5" Max
Base Size: 22.83" x 16.92"
Overall Size 23-7/8"L x 17"W x 72.5"H
Weight: 304 lbs.

Includes
LCD readout
LED work light
