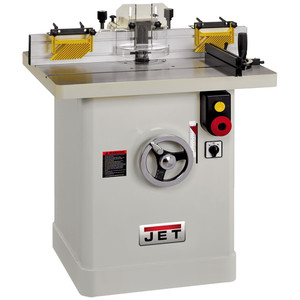

Jet JWS-25X 3HP Shaper, 1PH 230V, 1/2" & 3/4" Spindle

Description

This shaper features a powerful 3HP motor with magnetic controls. The large 25" x 25-1/2" precision ground cast iron table provides plenty of support. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independently adjustable left and right fence has a built in 4" dust port.

• Extra large chrome handwheel is conveniently located for fast, easy, and accurate spindle height adjustments
• Extruded aluminum fence comes with T-slots and 2 feather board hold-downs
• Reversible spindle speeds for diverse shaping jobs
• Starting pins for irregular shaping
• 2 speeds let you select the best speed and torque for different cutter diameters
• V-belt transfers maximum power to the spindle

Motor: 3HP, 230V, 60Hz, 16 Amps, 1 Phase
Recommended Circuit Size: 30 Amps
Table Size: 25-1/2"L x 25"W
Table Height from Floor: 33"
Spindle Size (Standard): 1/2", 3/4" Standard
Spindle Capacity Under Nut: Provided spindles (1/2" Spindle) 2-13/64", (3/4" Spindle) 3-3/16"
Spindle Travel: 3-1/2"
Spindle Speeds (RPM): 7,500, 10,000, reversing
Table T-Slot: 3/4"W x 3/8"T
Table Opening Diameter: 6-9/32"
Insert Opening Diameters: 2-9/16", 4-21/64"
Fence Size x 2: 14-1/2"L x 4-3/4"H
Dust Collection Minimum CFM Required 4" Port: 600
Overall Dimensions: 32-1/4"L x 28-1/4"W x 42-3/8"H
Weight: 381 lbs.

Includes
2 fences
2 hold-downs
miter assembly
1/2" spindle
3/4" spindle
additional accessories
tools
