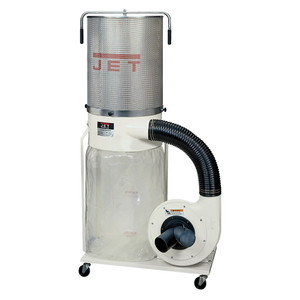

JET Dust Collector DC1200VX Bag Filter

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

Collector features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.

• Vortex Cone improves chip separation & collector bag packing efficiency
• Eliminates premature filter clogging for sustained performance
• Single-stage design for economical & quiet operation
• Industrial controls designed for years of trouble-free use
• Quick-connect collection bags w/elastic band for fast, easy installation & removal
• High air velocity (CFM) design stands up to any competitive specifications
• Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
• 5-year mfr.'s warranty

230V, 2 HP, 1 Phase, 8 Amps.
Sound Rating 80 - 85 dB.
Filter and Collector Bag 20" dia.
Collection Bag 5.3 cubic foot capacity, 29"L.
Filter Bag 32"L.
Overall Dimensions 37"H x 22"W x 79"L.
Tool weight 138 lbs.
1-Hose Connection 6" dia. 2-Hose Connection Diameter 4" dia.
Air Flow @ 4" 1,200 cu.ft/min.
Static Pressure 11-1/2 inch of water.
Particle Size (Micron) 96% of 30 micron particles.
Velocity @ 4" 13,745 foot per minute.
Air Inlet (1) at 6" or (2) at 4".
Steel Impeller 12" dia.
Separator Tank 20" dia. x 10"H.

Includes micron filter bag, 20" dia. collection bag, see-through dust bag.
