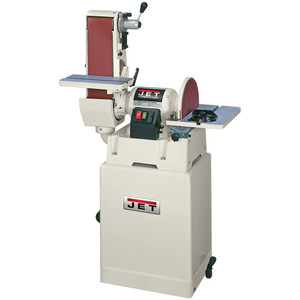

JET 6" x 48" VS Belt and 12" Disc Finishing/Grinding Machine

Description

Features a compact footprint and provides a variable speed solution to finish or grind mild steel, aluminum, and plastics. Speeds ranging from 2,200-4,000 SFPM (Belt) and 1,547-2,813 RPM (Disc). Both worktables tilt 45° for added versatility and are quickly dialed in with the included measurement gauge. Fine-tuned design for reduced vibration and a quieter operating level. Ideal for contour finishing, mitering, flat finishing, beveling, and precision finishing.

• Belt head is capable of both vertical and horizontal adjustments
• Drums are fully enclosed and sanding belt is guarded for safety
• Inverter allows for quick stopping of the belt and disc
• Variable position locks can be used to create a sturdy work surfaces
• Fully machined and balanced disc runs smoothly without any vibration
• Heavy-duty cast iron platen is both adjustable and removable.
• Die-cast aluminum miter gauge allows for easy attainment of both plain and compound miters
• Dust collector and dust chute are adjustable to maximize collection

Motor (HP): 2
Motor Voltage: 230. 1-phase
Belt Size: 6"W x 48"L
Belt Speed (SFPM): 2,200-4,400
Belt Table Size: 7-1/16" x 14-11/16"
Disc Diameter: 12"
Motor Speed (RPM): 1,720
Belt Grit: 80
Belt Table Tilt: 45° Out
Disc Table Size: 16-1/2"L X 9"W
Dust Port Size: 3"
Sound emission: 79 dB @ 3' without load
Overall size: 31-1/2"L x 22-27/32"W x 49-3/16"H
Weight: 288 lbs.
