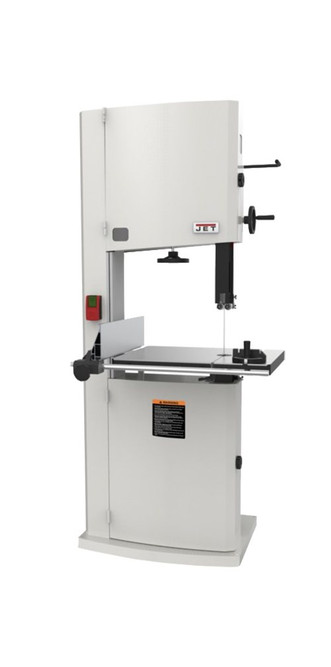

JET 20" Band Saw, 5 HP, 1 PH

SKU: M486091 JWBS-20-5
Write a Review
$4,987.00
SKU:
M486091 JWBS-20-5
Availability:
Ships direct from manufacturer. Lead times may vary.
prop65-text:
true
prop65-text-4:
lead
prop65:

Frequently Bought Together

Please choose options for all selected products

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

Designed to perform, the JET 20" band saw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET 20" steel frame band saw is engineered to build great projects through superior performance.

  • 16" resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
  • 27-1/4" x 20" precision ground cast iron table for added stability and work support
  • Fence system features a micro-adjustable, dual-position side plate
  • Tool-less, independently adjustable, upper and lower ball bearing guides
  • Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support
  • Easy-to-read blade tension scale can be viewed through upper door window
  • Single knob adjustment simplifies the blade tracking process
  • Blade tracking window provides clear view of blade during tracking
  • Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release
  • Cast iron trunnion for maximum support and stability
  • Slotted table allows for front blade removal
  • Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy
  • Round table insert features leveling screws for precise adjustment
  • Conveniently located dual 4" dust collection ports catch dust and chips at the source
  • Table tilts 5° left and 45° right to accommodate a wide variety of cuts
  • Mfr.'s 5-year warranty

Motor voltage: 230V
HP: 5
Phase: 1
Amps: 22
Recommended circuit size: 30 Amps
Band saw size/wheel diameter: 20-1/4"
Cutting capacity width: 20"
Cutting capacity height: 16"
Blade length: 158"
Blade width: 1" x 3 tpi
Maximum saw blade width: 1-1/2"
Minimum saw blade width: 1/8"
Blade speed: 2,530/4,850 SFPM
Table size: 27-1/4"L x 20"W x 1-5/8"T
Table tilt: -5°, 45°
Table height from floor: 37"
Dust collection minimum CFM required: 400
Dust port outside diameter: 4" (x2)
Overall size: 37"L x 32-1/4"W x 88"H
Tool weight: 588.5 lbs.

Includes fence, blade (hook, 1" x 0.035", 3 TPI) and miter gauge.
