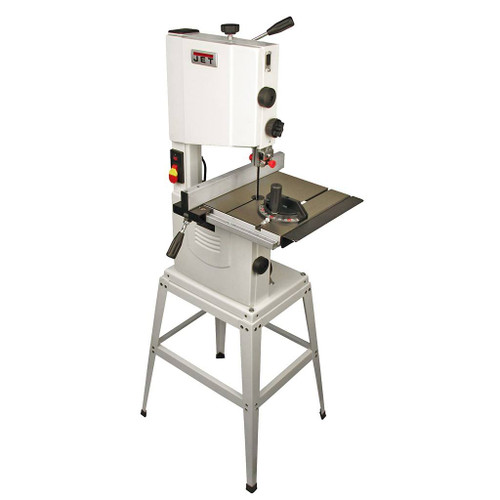

JET 10" Open Stand Band Saw
JET
SKU: M486038 JWB-10- SKU:
- M486038 JWB-10
- Availability:
- Ships direct from manufacturer. Lead times may vary.
- prop65-text:
- true
- prop65-text-3:
- lead, cadmium ^^ lead, cadmium, phthalates
- prop65:
- wood.jpg
Description
Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.
If space is at a premium in your shop, this is the bandsaw for you. With quick release blade tension, upper and lower ball bearing blade guides, an extra-large cast iron tilting table, and an easily adjustable LED work light - this well-equipped bandsaw has all the features you're used to on bigger bandsaws.
- Compact benchtop design allows for easy transport to different shop locations
- Rigid steel stand allows bandsaw to transition from the benchtop to the floor
- Reinforced steel base can be bolted to stand or work bench
- 1/2 HP induction motor easily handles various cutting applications
- Poly-V drive system maximizes power transfer from motor to blade and reduces vibration
- Upper and lower ball bearing blade guides provide blade stability
- Extra large cast iron table with retractable extension wing provides additional work piece support
- One piece welded frame design reduces machine vibration and flex
- Oversized, ergonomic knobs provide ease of use and maximum control
- Quick release blade tension makes changing and re-tensioning the blade fast, easy and consistent
- Flexible LED light provides visibility without blocking line of sight
- Aluminum extruded fence ensures smooth sliding action
- Table tilting trunnion allows working angles from 0° to 45°
- Magnifying cursor enlarges measurement scale for precise fence location
- Rack and pinion blade guide adjustment with integrated locking knob for precise height control
- Blade site window to view blade tracking
- Dust port accepts multiple size hoses
- Miter gauge and fence included
- Mfr.'s 5-year warranty
Motor: 1/2 HP, 1PH, 115V, 3.4 amps
Band Saw Size: 10" (255 mm)
Cutting Capacity: 4-1/8"H (100 mm), 9-1/2"W (245 mm)
Maximum Rip with Fence: 5" (125 mm) Left and Right
Blade Length: 67-1/2" (1712 mm)
Blade Speed: 2750 FPM (870 m/min)
Minimum Blade Width: 1/8" (3.175 mm)
Maximum Blade Width: 1/2" (12.7 mm)
Table Size: 13-1/8" x 13-3/8" (335 x 345 mm); with Extension: 13-1/8" x 19" (334 mm)
Table Tilt: 0° to 45°
Table Height from Floor: 41-1/2" (1055 mm)
Wheel Diameter: 10" (255 mm)
Dust Chute Diameter: 4" (100mm)
Overall Dimensions without stand: 27"L x 18"W x 33"H (686 x 457 x 838 mm); with stand: 30"L x 19-1/2"W x 59-1/2"H (762 x 496 x 1511 mm)
Stand Dimensions: 25-3/4"H (654mm); Base: 22-1/2"L x 19"W (572 x 483mm); Top: 16-1/8"L x 13"W (410 x 330 mm)
Weight: 83 lbs. (36.4 kg)
Includes stand, LED work light and blade.
