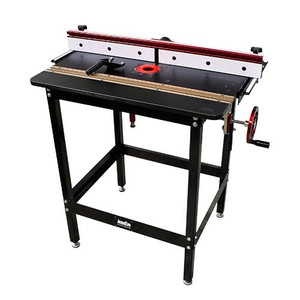

JessEm Mast-R-Lift Excel II

Description

The Mast-R-Lift Excel II is the top of the line Router Table. Features include double sealed bearings to the lift spindle, 6 double sealed bearings to the height adjustment mechanism (actuated through 2 gear boxes) and 3 double sealed bearings to the Cam Lock. This will provide you with a lifetime of use, even with the heaviest routers on the market, your Excel II will be able to raise and lower with ease.

All of JessEm's Lifts have the patented feature of adding tension to the threaded spindle which will remove any backlash while still adding some resistance to the rotation to the thread. This removes any vibration from the thread clearance and also prevents the spindle from moving and changing your setting while routing. This feature is included on the Mast-R-Lift Excel II as well. The Excel II, features a dedicated locking mechanism for heavy duty long term routing operations. Now, not only do you have the patented tensioning feature but we also have added a cam lock that is accessible from the same location as the crank handle. A simple twist ensures your Excel II is locked securely in place, giving you more confidence that the height is set and locked.

The Shafts on the Mast-R-Lift Excel II, like all of JessEm's Router Lifts are pressed into a shaft mount with hydraulic pressure. By pressing the shafts into a larger diameter mount we are able to attach the shafts to the top plate and fasten in place with more than one screw. This spreads the lateral load and provides a very rigid and durable mount that will withstand the toughest routing operations. All of the aluminum non wear components on the lift are anodized for appearance, corrosion resistance and some wear resistance.

Compatible routers:

Porter Cable 7518 (4.2” Motor Dia.)
Porter Cable 690/890 (3.5” Motor Dia.)
JessEm's Pow-R-Tek Router Motor - (4.2" Motor Dia.)
Bosch 1617/1618 (3.5” Motor Dia.)
DeWalt 610/618/616 (3.5” Motor Dia.)
Makita 1101 (3.218” Motor Dia.)
Hitachi M12VC & KM12VC (3.267” Motor Dia.)
Milwaukee 5625 (4.143” Motor Dia.)
Milwaukee 5615/5616/5619 (3.32” Motor Dia.)
Craftsman 17543/17540/28190 (3.5” Motor Dia.)
Rigid R29302 (3.625” Motor Dia.)
Portamate PM-P254 - (4.2 Motor Dia.)
