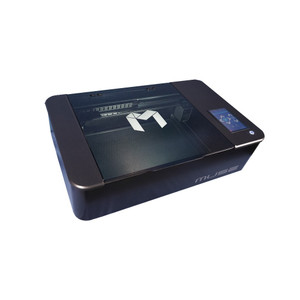

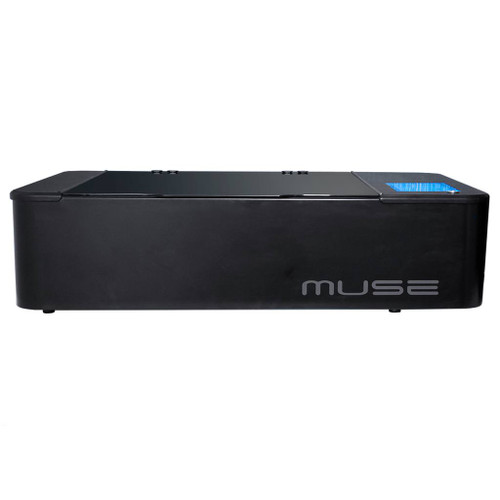

Full Spectrum Muse 3D Autofocus Desktop Laser System with Donaldson BOFA Fume Extractor

Description

Inspire. Design. Create.

Muse is the best desktop laser on the market and keeps getting better with 3D camera features, live real-time autofocus, LCD touchscreen functions and the powerful, yet easy-to-use, self-hosted browser based RetinaEngrave v3.0 laser control and design software. From creating original art to starting your own small business, Muse offers the best, most innovative technology in the desktop laser market.

Motorized Real-time Autofocus
Streaming real-time 3D camera depth data allow automatic Z height adjustments while the job is running to respond to dynamic focusing while the job is running. Stay in focus even on curved surfaces and when surfaces are dynamically changing/warping during a job. In addition, a clever mechanical sensor built into the laser head itself provides backup height data when 3D camera data is unavailable.

Intel RealSense™ 3D Camera
2D camera technology can only be used for flat surfaces and cannot compensate for curved or warped surfaces or varying heights. Muse 3D Vision with Autofocus utilizes Intel’s 3D RealSense technology to accurately map millions of 3D data points. Engrave or cut on variable material heights in a single job, including curved surfaces. Watch your jobs on mobile devices and more! A live view of the camera is available on the touchscreen, within RE3 and on mobile devices.

Features

• True 20" x 12" Cutting Area
• Patented Removable floor to engrave on material larger than the internal work area
• RetinaEngrave v3.0 self-hosted browser-based laser control and design software (still operates without live Internet connection)
• Intel RealSense™ 3D Camera option 3D scans every pixel for precision XY and focus position
• Motorized Real-time Autofocus option for curved objects
• Sleek on-board 7" LCD touchscreen control
• Cuts up to 1/4" non-metal material
• Engraves up to 1000 dpi resolution
• Optional accessories like the rotary and riser engrave on rounded or larger objects
• Mfr.'s 1-year warranty

Specifications

WEIGHT & DIMENSIONS
Engraving Area: 20" x 12" (508mm x 305mm)
Machine Dimensions: 32.3"W x 20.3"D x 8.5"H (820mm x 515mm x 215mm)
Weight: 54 lbs. (24.5 kg)
Z-Height: 2.5"

LASER
Laser Classification: Class 3
Laser Type: Sealed CO2 Laser Tube
Laser Power: 40W
Focus Lens Included: 2"
Integrated Red Guiding Laser and Beam Combiner
Resolution: Up to 1000 dpi

POWER
Power Supply: ​AC 110V native
Gross Power: < 1000W

SYSTEM
Operation Modes: ​Precision Raster, Vector or Combined Modes
Motion Control: High-speed, High-precision stepper motors
Operating Temperature: 0C - 45C

CONTROL SOFTWARE
Software: RetinaEngrave v3.0
Compatibility: PC, Mac & Linux
Apple® macOS® X v10.9 or later (Mavericks)
Microsoft® Windows® 10
Microsoft® Windows® 8.1
Microsoft® Windows® 7 SP1
Browser Compatibility: Google Chrome (recommended), Safari, Firefox, Edge
File Import Options: jpg, png, bmp, pdf, svg
Minimum Screen Resolution: 1024 x 768 Pixels
Ability to Connect Through Local Network (Ethernet or Wireless) without Internet Connection
Wireless Compatibility: 802.11n

MATERIAL CAPABILITIES
1/4" Wood (Cut/Engrave)
1/4" Acrylic (Cut/Engrave)
Fabric (Cut/Engrave)
Cardboard (Cut/Engrave)
Paper (Cut/Engrave)
Natural Leather (Cut/Engrave)
Stone (Engrave only)
Glass (Engrave only)
Rubber (Cut/Engrave)

MACHINE FEATURES
7" LCD Touchscreen
Linear Rail Motion System
Sturdy Metal Case Design
Removable Floor
Various Focal Lens Options, sold separately.
Riser & Rotary Options, sold separately.

What's in the box

Includes

Muse
40W Tube
2" Focus Lens
Cool-Box
BOFA AD350 Fume Extractor
BOFA Hose Kit
