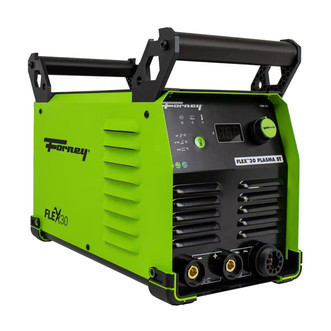

Forney Flex 30 Plasma ST

Description

This all-in-one welding and cutting machine is portable, easy to use, generator-friendly, and features innovative inverter technology. Powerful, dual-voltage plasma cutter and stick/TIG welder works with 120V and 240V power. Cleanly cut from thin sheet metal to 3/8" plate (sever cut up to 5/8"). Constructed with an all-metal case. Digital display provides greater accuracy and control. Manufacturer's 3-year warranty on power source and 1-year warranty on torch.

Material: Mild Steel, Sheet Metal, Stainless Steel, Aluminum, Copper
Output Power (Welding): 120V @ 85A, 240V @ 160A (DC output only)
Output Power (Cutting): 120V @ 20A, 240V @ 30A
Input Voltage: 120V/240V
Electrode Diameter: Up to 5/32"
Plate Thickness: Up to 3/8"
Cutting Capacity: 3/8" clean cut, 5/8" sever cut
Duty Cycle (TIG): 120V: 30% @ 85A, 240V: 30% @ 160A
Duty Cycle (Stick): 120V: 30% @ 80A @ 30%, 240V: 25% @ 160A
Duty Cycle (Plasma): 120V: 35% @ 20A, 240V: 60% @ 30A
Amperage Range (TIG): 120V: 10A-85A, 240V: 10A-160A
Amperage Range (Stick): 120V: 10A-80A, 240V: 10A-160A
Amperage Range (Plasma): 120V: 10A-20A, 240V: 10A-30A
Recommended Air Supply Flow Rate: 4.5 CFM
Certification: CSA listed
Phase: Single
Size: 16.68" x 8.25" x 11.94"
Weight: 19.65 lbs.

Includes
consumables
6' power cable
8' stick electrode holder
8' ground cable and clamp
15' removable plasma torch with Euro Connect 120V-240V adapter cord
