Fischer Roller-Guided Bend Tester, Pneumatic

Description

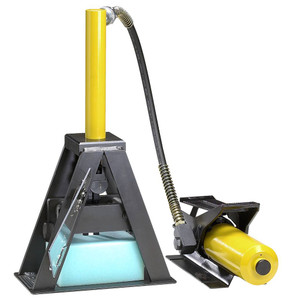

This versatile unit allows your welding program to grow and to meet changing needs. Readily adjustable for all standard radii and up to 3/8" or 1/2" thick specimens required by the ASME, AWS, API, and Military codes and standards. Comes with a 1-1/2" diameter mandrel which is the one most commonly used for 3/8" thick plain carbon and stainless steels. Unlike die-type jigs that use rounded shoulders, this unit uses hardened, tool steel rollers to support the specimen during bending. The rollers rotate on heavy-duty needle bearings so there is no drag placed on the specimen. The bent specimens bottom eject into a foam cushion.

• Easily adjusted for different bend radii
• 1/8" to 1-7/8" bend radii standard
• Rapid, multiple bends possible
• For manufacturing/fabricating environments
• Integral hydraulic system
• Portable

Code Compliance: ASME, AWS, API, MIL
Specimen Thickness: 1/8" to 1/2"
Mandrel Range: 0.250" to 3.750" dia.
Bending Force: 10,000 lb. maximum
Service Required: 90-120 psi air at 6-9 cfm
Bender size: 17"W x 6"D x 22"H
Pump size: 5"W x 15"D x 6"H
Weight: 67 lbs.

Includes
integral hydraulic cylinder
air-driven pump
mandrel
mandrel adapter
