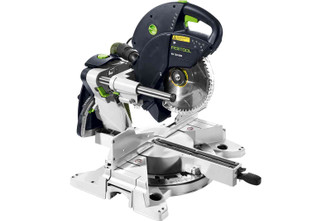

The KAPEX is the most advanced sliding compound miter saw in the market today — making cuts that rival the finest trim work. Light in weight and heavy in features, the KS 120 is the perfect saw for the workshop or the jobsite. Effective dust extraction, precise cuts, easy adjustments, and quality components are some of the features that should make this saw the number one choice of professional tradesmen.
Crown molding diagonal cut 45°/90°: 6-5/8" (168 mm)
Special cutting depth 45°/90° (right): 3/4" (20 mm) x 4-3/4" (120 mm)
Crown molding diagonal cut at 90°/90°: 6-5/8" (168 mm)
Power consumption: 1,600 watt
Special cutting depth 90°/90°: 2-1/4" (60 mm) x 4-3/4" (120 mm)
Saw blade diameter: 10-1/4" (260 mm)
Dust extraction connection dia.: 1-1/16"/1-7/16" (27/36 mm)
Special cut. depth 45°/90° (left): 1-1/2" (40 mm) x 4-3/4" (120 mm)
Dimensions: 28"W x 19-3/4"D x 18-1/2"H (713 x 500 x 470 mm)
Work height: 35-1/2" (900 mm)
Weight: 50.93 lbs (23.1 kg)

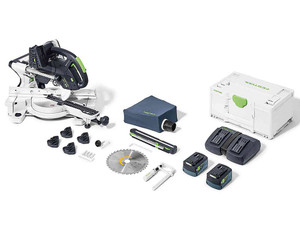

Includes
HW universal saw blade W60
Angle transfer device
Hold Down Clamp
Hex key, WAF 6
